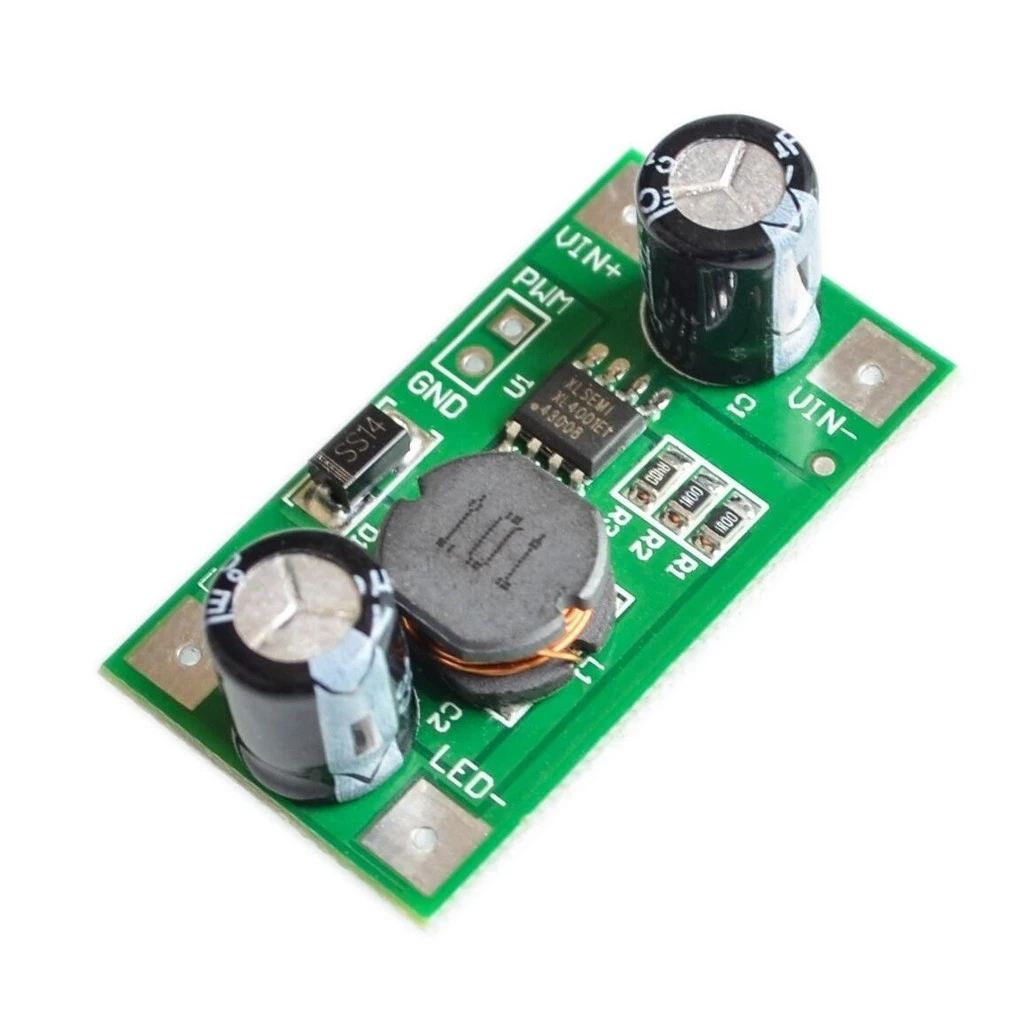

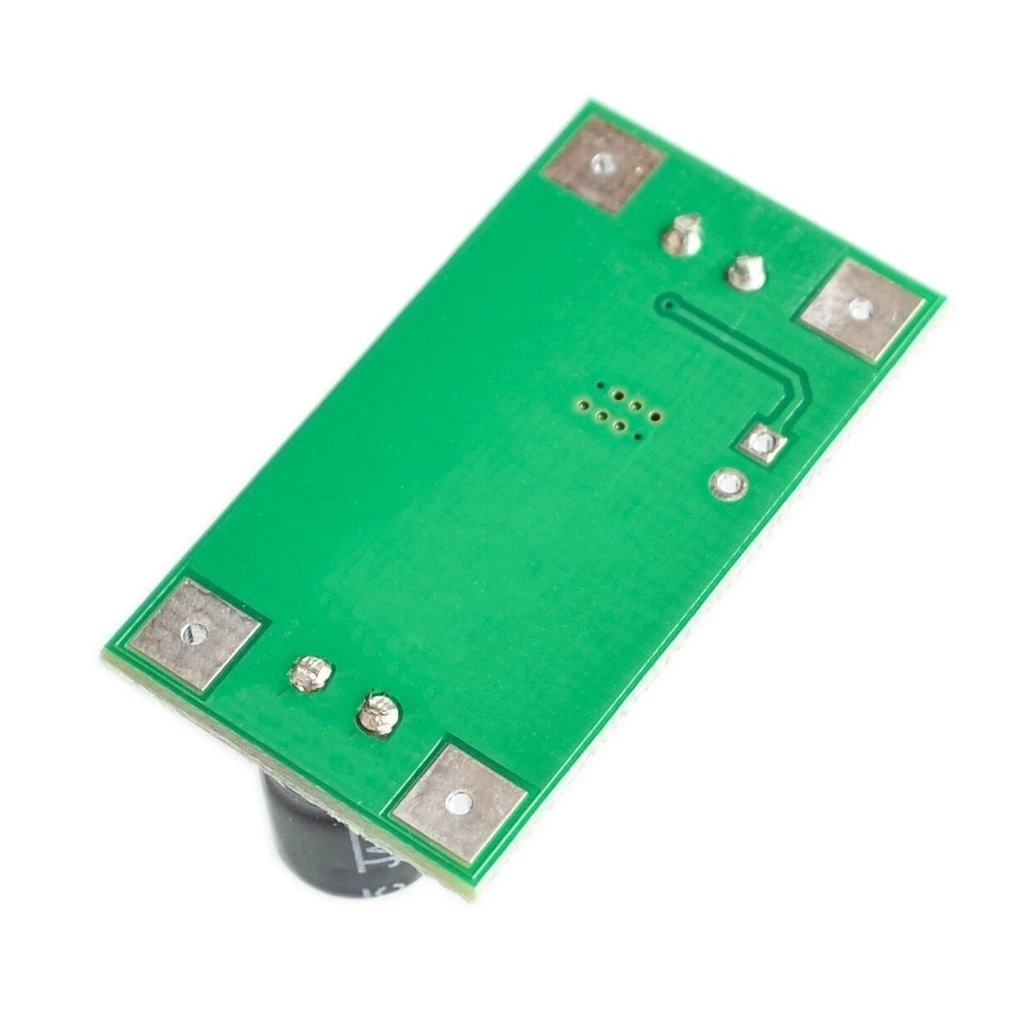

3W LED Driver 5-35V 700mA PWM Dimming DC to DC Step-down โมดูลควบคุมกระแสไฟคงที่ สำหรับขับ LED

3W LED Driver 5-35V 700mA PWM Dimming DC to DC Step-down โมดูลควบคุมกระแสไฟคงที่ สำหรับขับ LED

• Item No.: LED-3W
• Input range DC5-35V
• Output 700mA±20mA
• Support PWM dimming high level to turn off output low level to open output.
• The step-down mode ensures that the total voltage difference of the LEDs is lower than the input supply voltage of 2-3V.
• Ultra-small size design (length 3.6cm * width 2cm), low noise, safe features.
• Adopt high-efficiency, low-consumption and stable chips to achieve energy saving and environmental protection.
• Constant output current, low ripple. It ensures the safety and stability of LED use, improves the light efficiency of LED and reduces light decay.
• Overload, short circuit, and overcurrent protection ensure power supply safety.
• Wide voltage input, VIN+ is the input positive VIN- is the negative input of the power supply.
• The LED+ is connected to the anode of the LED, and the LED is connected to the cathode of the LED.
