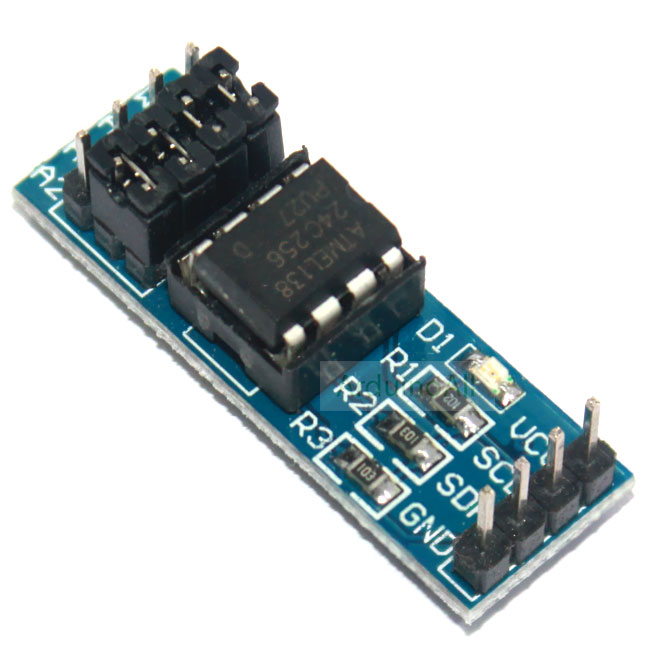

XD-15 AT24C256 I2C Interface EEPROM Module

XD-15 AT24C256 I2C Interface EEPROM Module

Description

Brand new and high quality EEPROM stands for electrically erasable programmable read only memory. It is a secondary storage device that once written (programmed) can hold data even when the power is removed. If you need more storage for your project, or you want to learn how to use EEPROM, then this module is designed for you. It supplies an extra 256k byte for your project. You only need simply wire them via I2C. Size: 3.7x 1.7cm 1 x AT24C256 256K Serial EEPROM Data Storage Module

Technical Specifications

1. Onboard 8P-chip carrier, can support AT24C256 series chips

2.Pin power supply, on-board power indicator

3. on-board pull-up resistor for I2C communications required

4. All pins leads out and be marked, the address input and the write-protect pin direct jumper settings

5. PCB board size: 36.5 (mm) x12 (mm) What's in the package

6. AT24C256 I2C Interface EEPROM Memory Module
