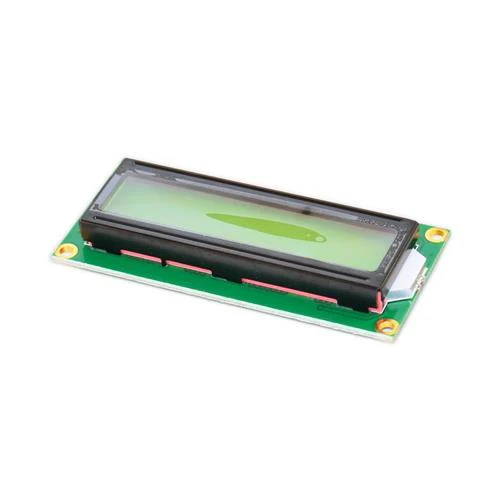

1602 LCD (Yellow Screen) 16x2 LCD with LED Backlight

จอ LCD สีเหลือง ขนาด 16 ตัวอักษร 2 บรรทัด พร้อมไฟ Backlight

แนะนำให้ใช้ร่วมกับ LCD1602 I2C Interface Adapter Board เพื่อความง่ายและลดจำนวนสายในการต่อ

General Description

• 16 characters (5x8 dots) x 2 lines FSTN Positive Black & White Transflective Dot Matrix LCD module.
• Viewing Angle: 6 O¡¯clock direction.
• Driving scheme: 1/16 Duty, 1/5 bias.
• HD44780 LCD Controller and Driver or equivalent.
• 40-Channel Segment/Common Driver for Dot Matrix LCD or equivalent.
• Connector: 16 pins ZIF SMD connector (CON-IL-402).
• White LED05 backlight.

description

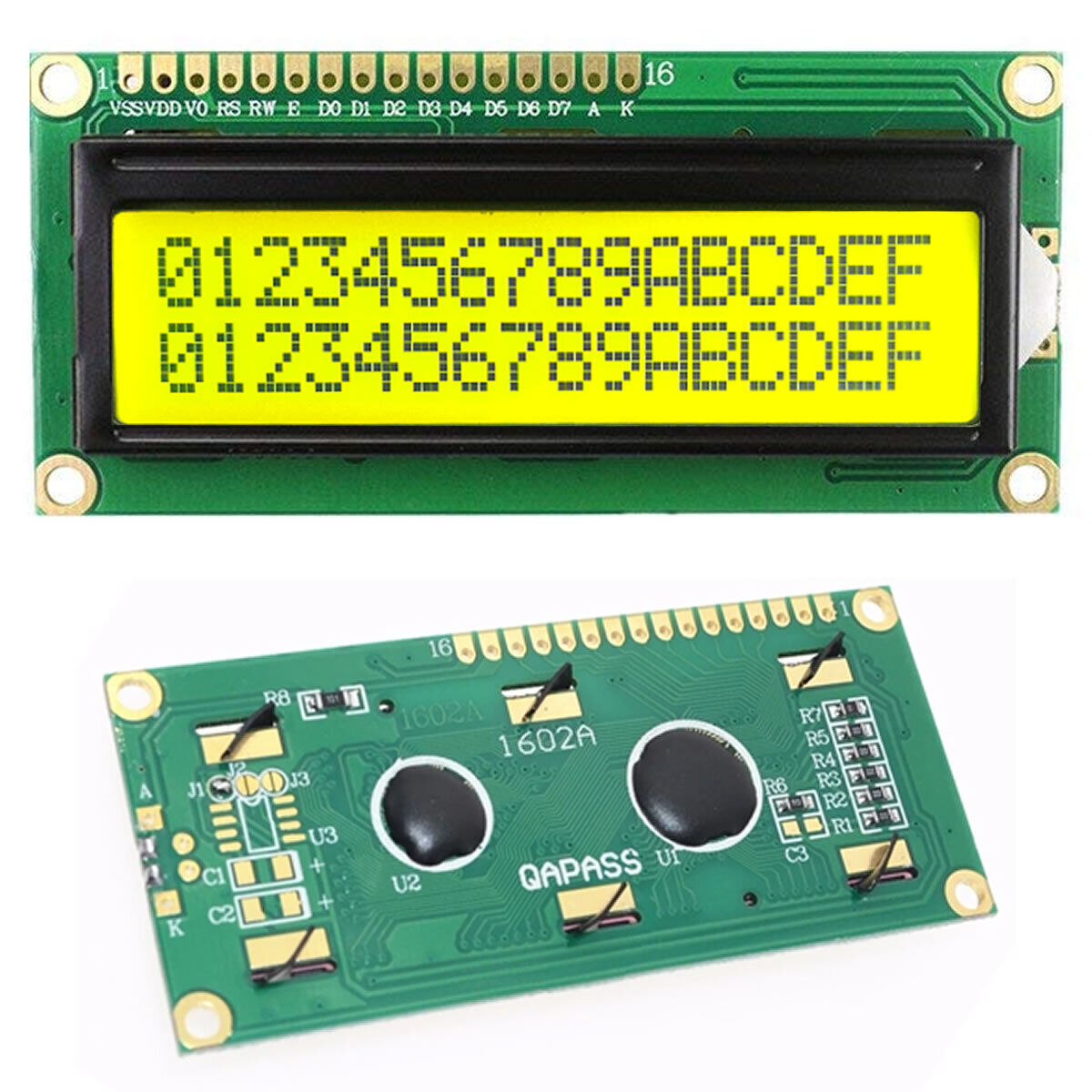

wiring diagram

example

#include
// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(12, 11, 5, 4, 3, 2);
void setup() {
// set up the LCD's number of columns and rows:
lcd.begin(16, 2);
// Print a message to the LCD.
lcd.print("hello, world!");
}
void loop() {
// set the cursor to column 0, line 1
// (note: line 1 is the second row, since counting begins with 0):
lcd.setCursor(0, 1);
// print the number of seconds since reset:
lcd.print(millis()/1000);
}
