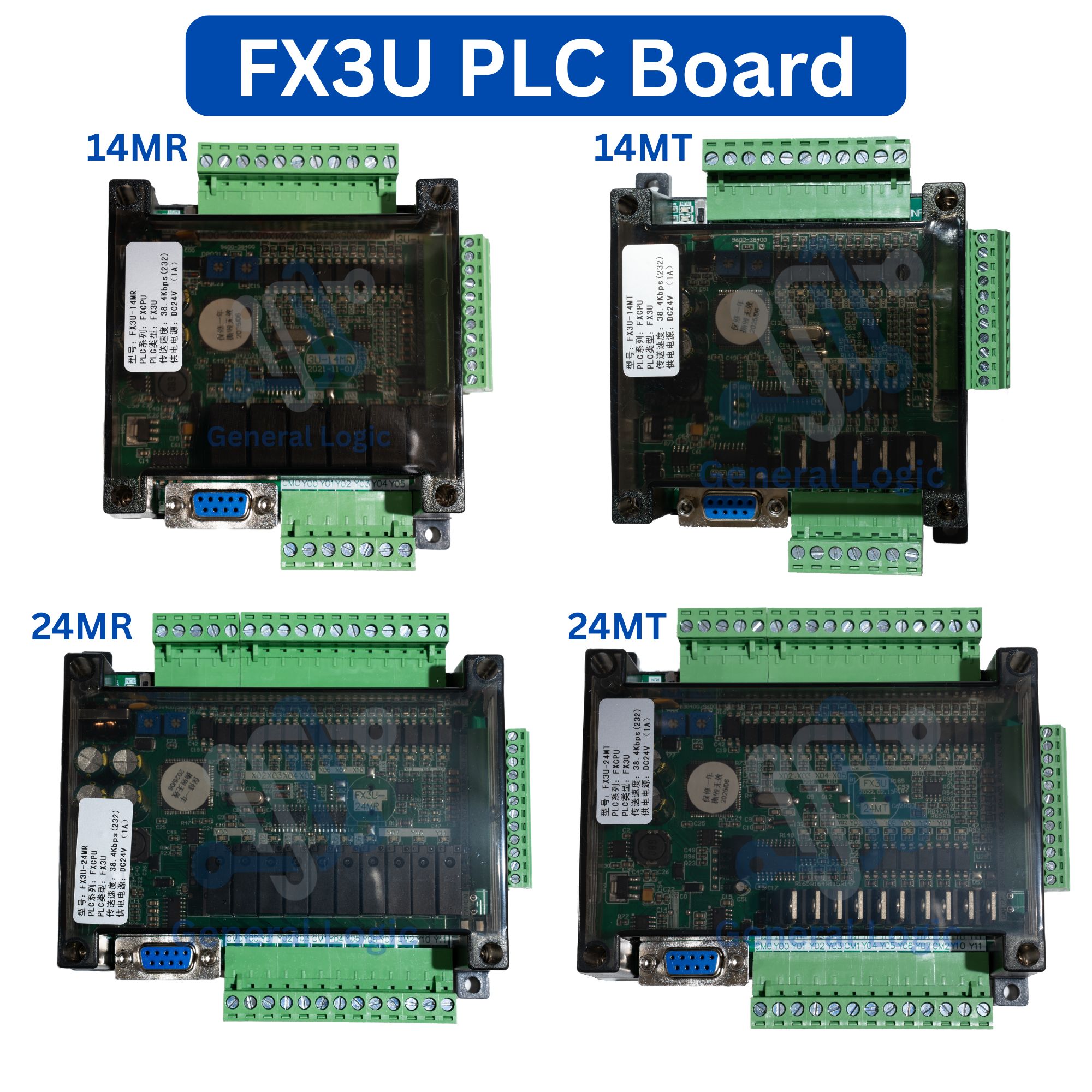

FX3U PLC Board บอร์ดควบคุม อุตสาหกรรม FX3U 14MT / 14MR / 24MT / 24MR

FX3U PLC Board บอร์ดควบคุมอุตสาหกรรม FX3U 14MT / 14MR / 24MT / 24MR

FX3U Specifications:

บอร์ด PLC ใช้งานร่วมกับโปรแกรม GX-Developer, GX-Work 2 (Fix Buadrate 38400)

• Type: Transistor output (MT) / Relay output (MR)
• Power Supply: 24V DC
• Programming Software: GX-Developer, GX-Work 2
• High-Speed Counting: 6 Channels, 12K
• Pulse Output: 2 Channels, 100K
• Floating Point: Supported
• Stepper Motor: Supported
• Memory Capacity: 8,000 steps
• RS485 Communication: Supported
• Memory: 64,000 steps of program memory

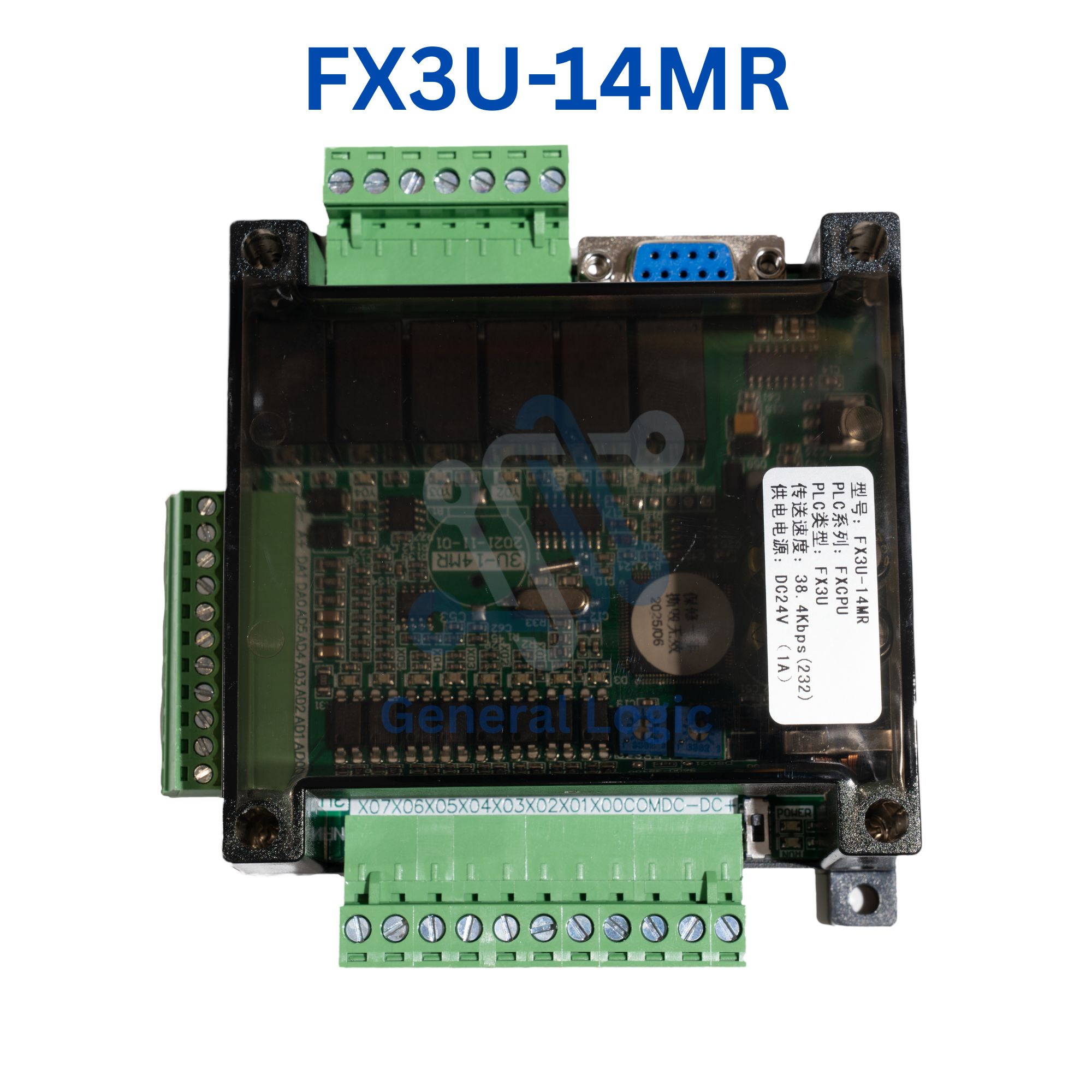

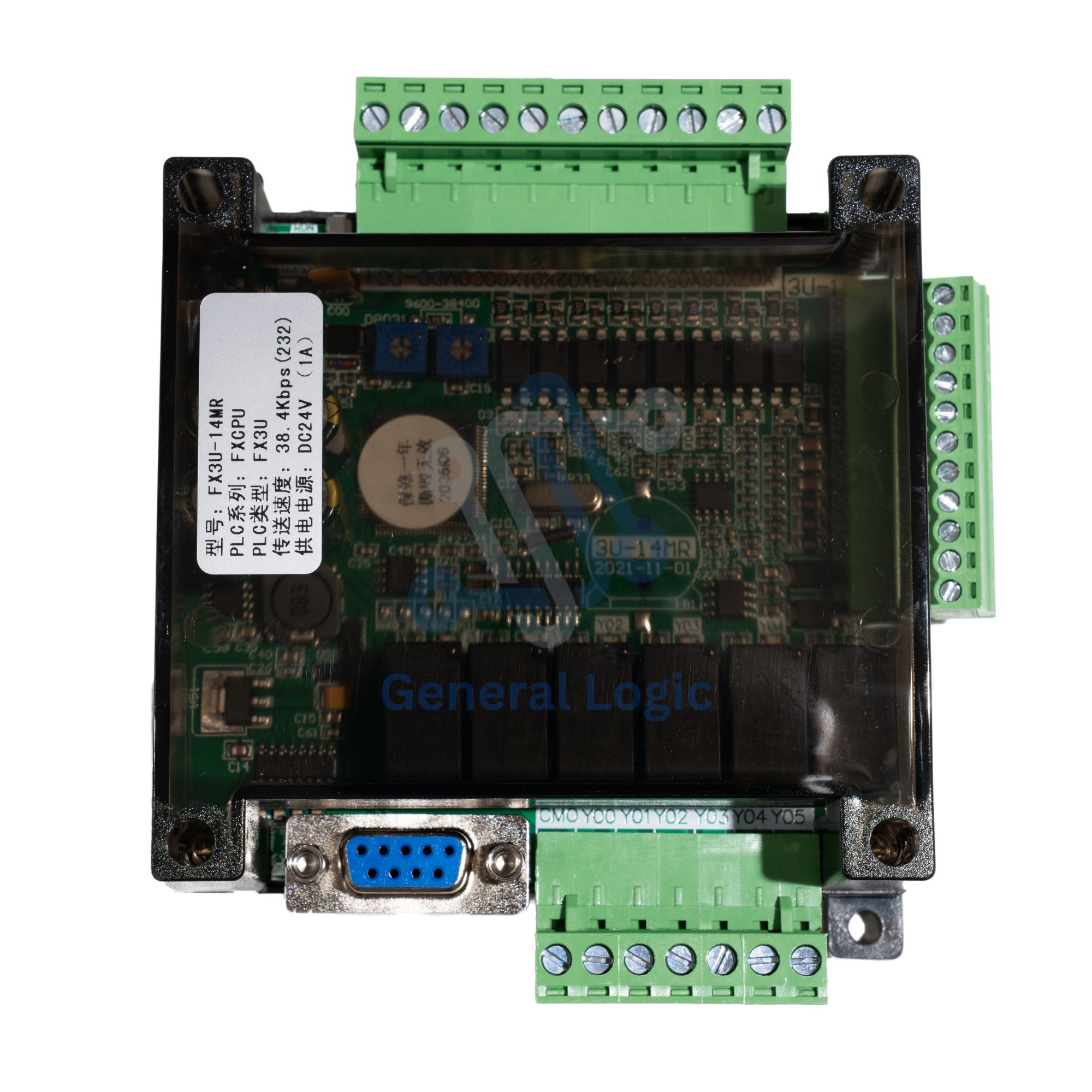

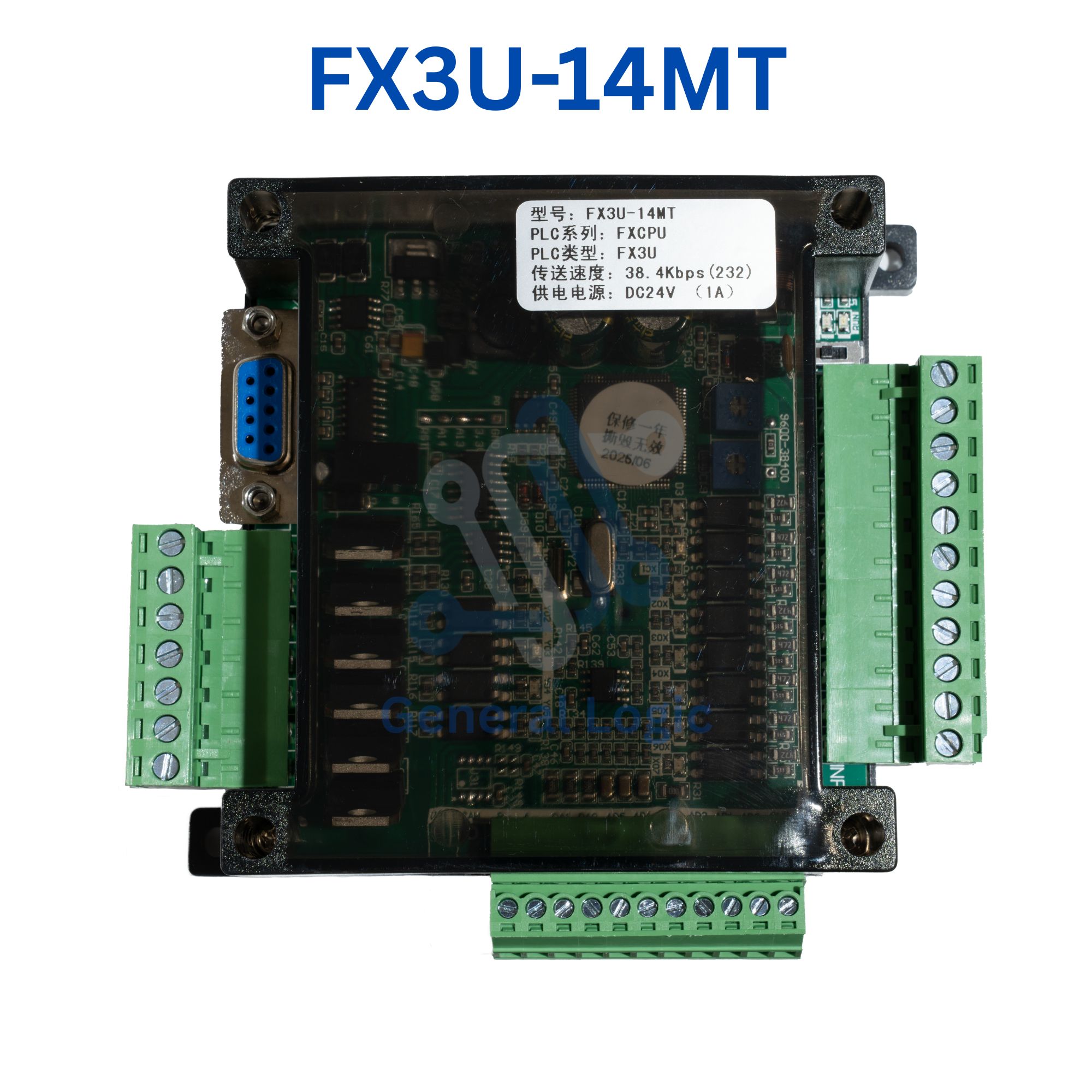

FX3U-14MT / FX3U-14MR Specifications:

Digital I/O:

• Inputs: 8 (X0-X7)
• Input Type: NPN (negative logic, low level)
• Outputs: 6 (Y0-Y5)
• Output Type: Transistor
• Output Current: 1A

Analog I/O:

• Analog Inputs: 6 (6AD)
• Analog Outputs: 2 (2DA)

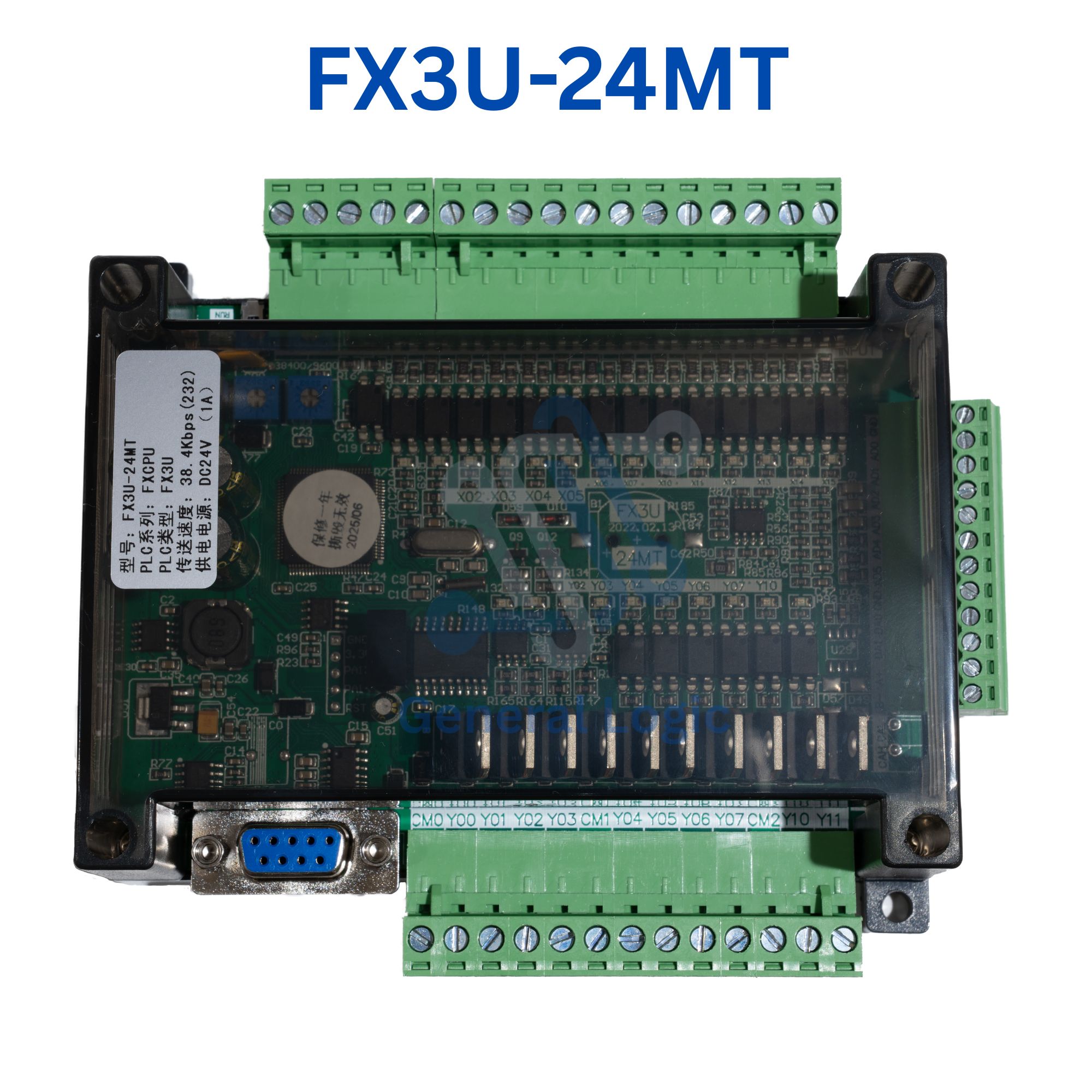

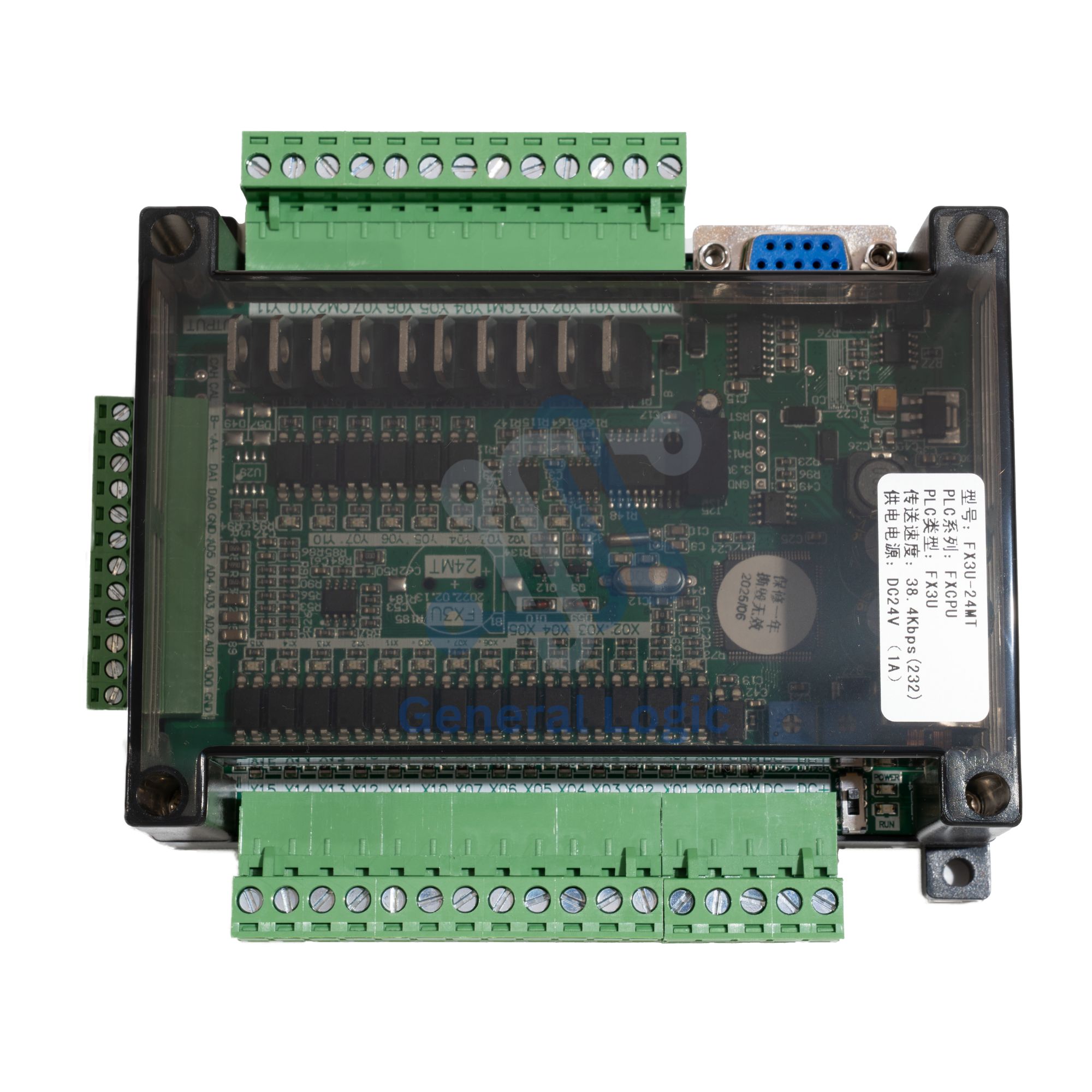

FX3U-24MT Specification:

Digital I/O:

• Inputs: 14 (24V DC, Sink/Source)
• Outputs: 10 (Transistor, 24V DC, Sink/Source)
• Total Digital I/O: 24 (14 inputs + 10 outputs)
• High-Speed Counters: 6 channels

Analog I/O:

• Inputs: 6 channels (e.g., 0-10V DC or 4-20mA)
• Outputs: 2 channels (e.g., 0-10V DC or 4-20mA)

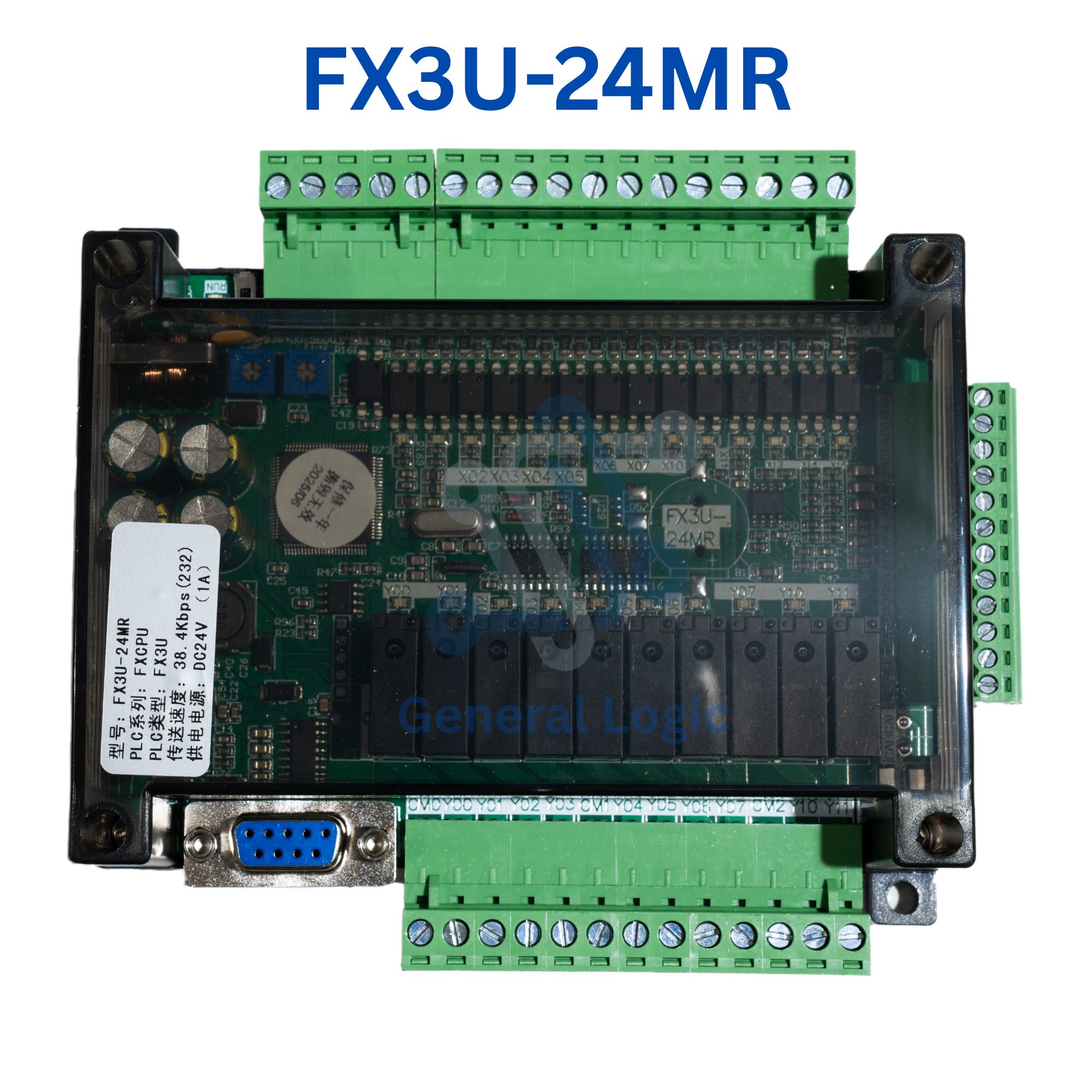

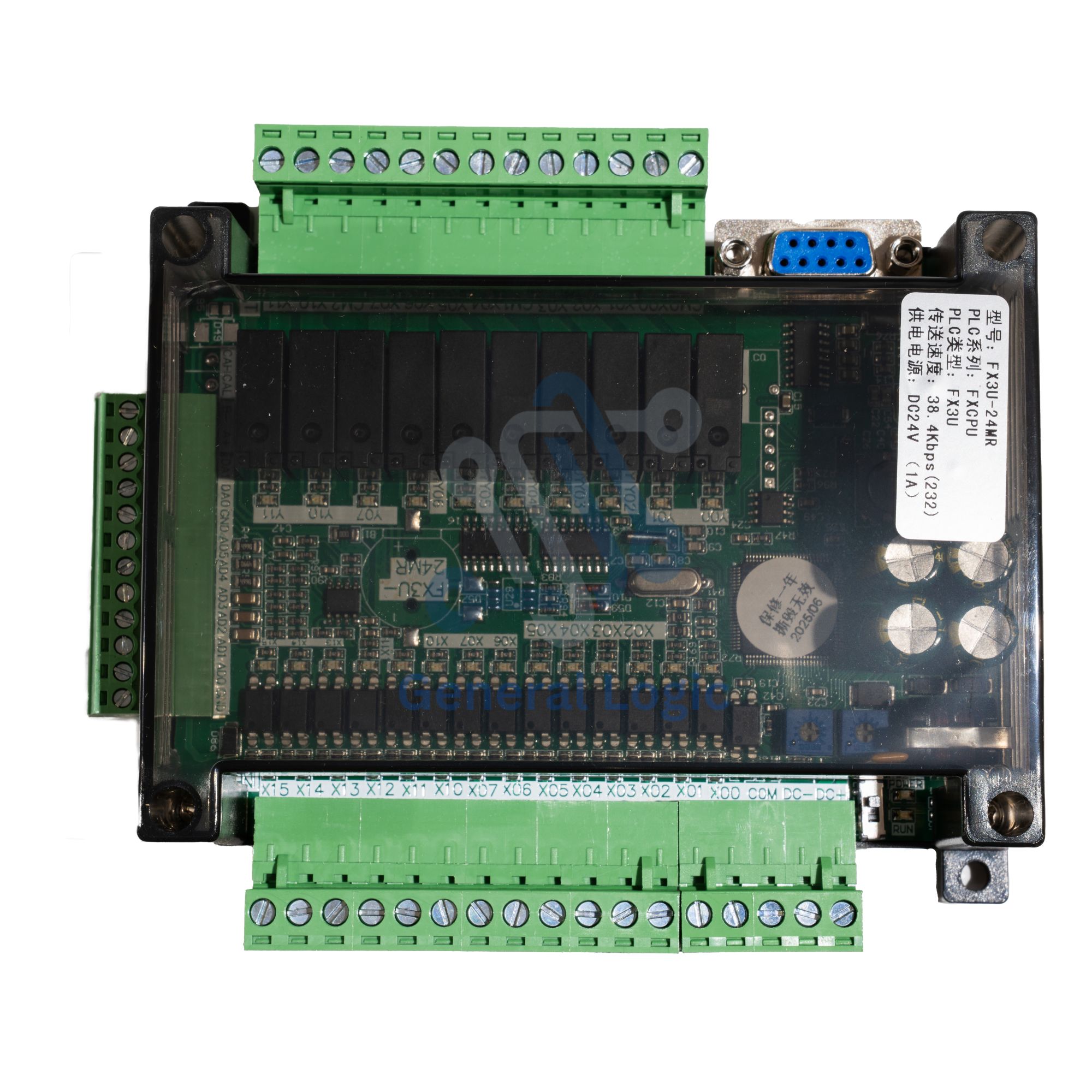

FX3U-24MR Specification:

• Inputs: 14 (X0-X13), DC24V, sink/source
• Outputs: 10 (Y0-Y9), relay type, 2A per point, 24V DC/250V AC
• High-speed counters: X0-X5 are high-speed counting input ports

• Inputs: 6 (-10V DC or 4-20mA)
• Outputs: 2 (-10V DC or 4-20mA)
