StepStick DRV8825 Stepper Motor Driver ขับสเต็ปมอเตอร์

StepStick DRV8825 Stepper Motor Driver ขับสเต็ปมอเตอร์

DRV8825 สำหรับขับ stepper motor ใช้ไอซี DRV8825 ขับกระแสสูงสุดได้ 2.5A ใช้ไฟเลี้ยง 3.3V - 5V ปิดระบบเมื่ออุณหภูมิเกิน หรือโวลต์ต่ำกว่า มีวงจรป้องกัน เอาต์พุตช็อตกับกราวน์

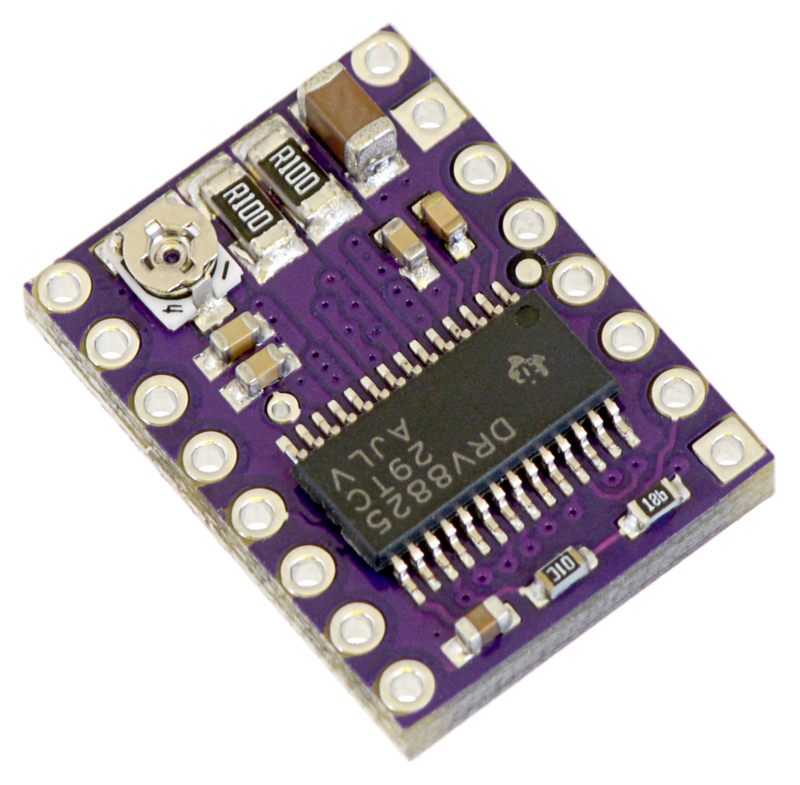

The DRV8825 stepper motor driver carrier is a breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver. The module has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. The DRV8825 features adjustable current limiting, overcurrent and overtemperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 – 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling).

คุณสมบัติ DRV8825 Stepper Motor Driver:

1. Simple step and direction control interface

2. Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step

3. Can interface directly with 3.3 V and 5 V systems

4. Over-temperature thermal shutdown, over-current shutdown, and under-voltage lockout

5. Short-to-ground and shorted-load protection

6. 4-layer, 2 oz copper PCB for improved heat dissipation

7. Exposed solderable ground pad below the driver IC on the bottom of the PCB

8. Module size, pinout, and interface match those of our A4988 stepper motor driver carriers in most respects (see the bottom of this page for more information)

9. Adjustable current control lets you set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor’s rated voltage to achieve higher step rates

10. Intelligent chopping control that automatically selects the correct current decay mode (fast decay or slow decay)

11. 45 V maximum supply voltage

12. Built-in regulator (no external logic voltage supply needed)

Usage instructions : https://www.pololu.com/product/2133
