Infrared Remote Control Kit for Arduino ชุดรีโมดควบคุมอินฟาเรด (ขาว)

• Transmission distance: >8m
• Effective angle: 60'
• Quiescent current: 3-5uA
• Dynamic current: 3-5mA
• Ideal for Arduino DIY project

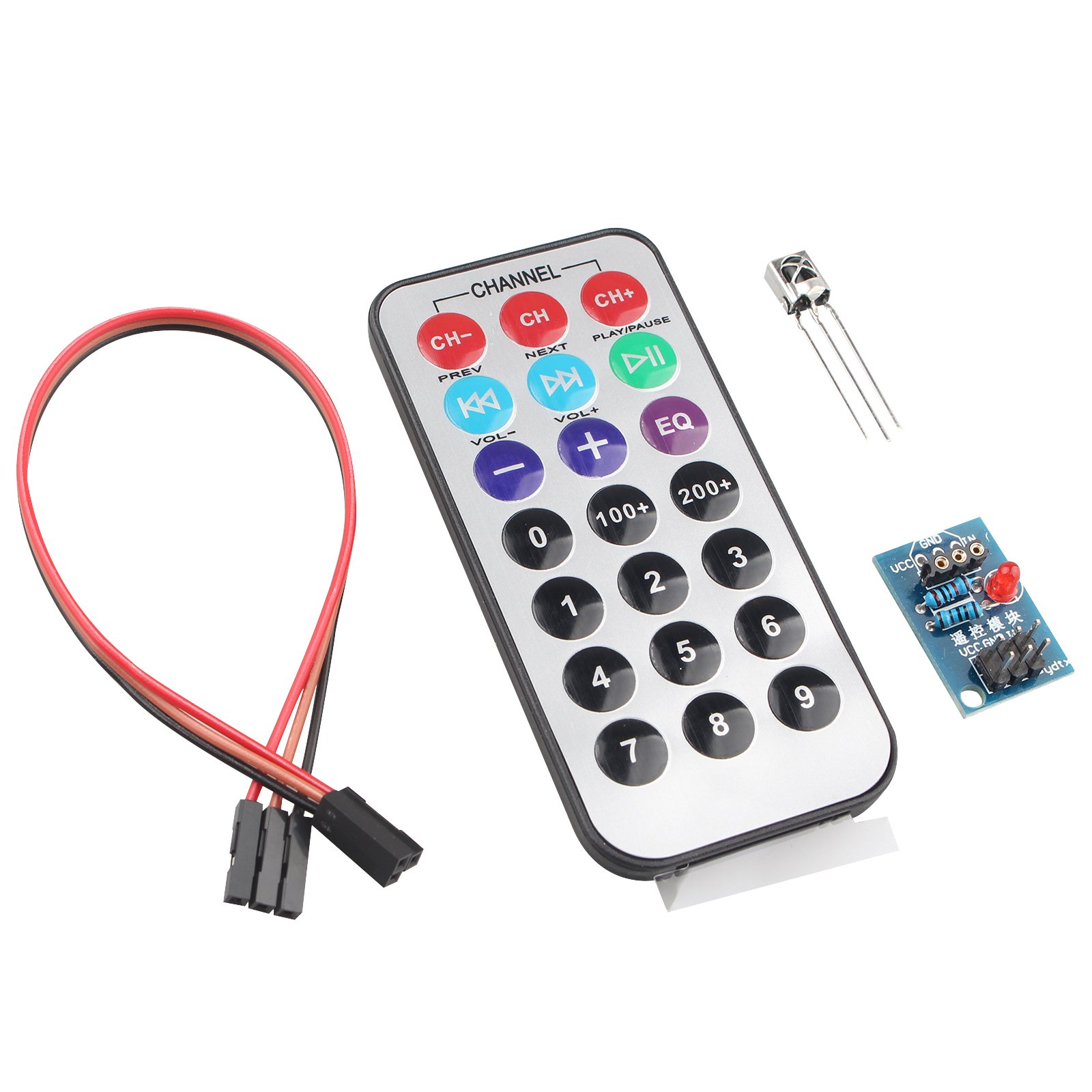

• 17-key IR remote control(1*CR2025 battery, included)
• Transmit 38KHz modulating signal

#include //include the library

//PIN

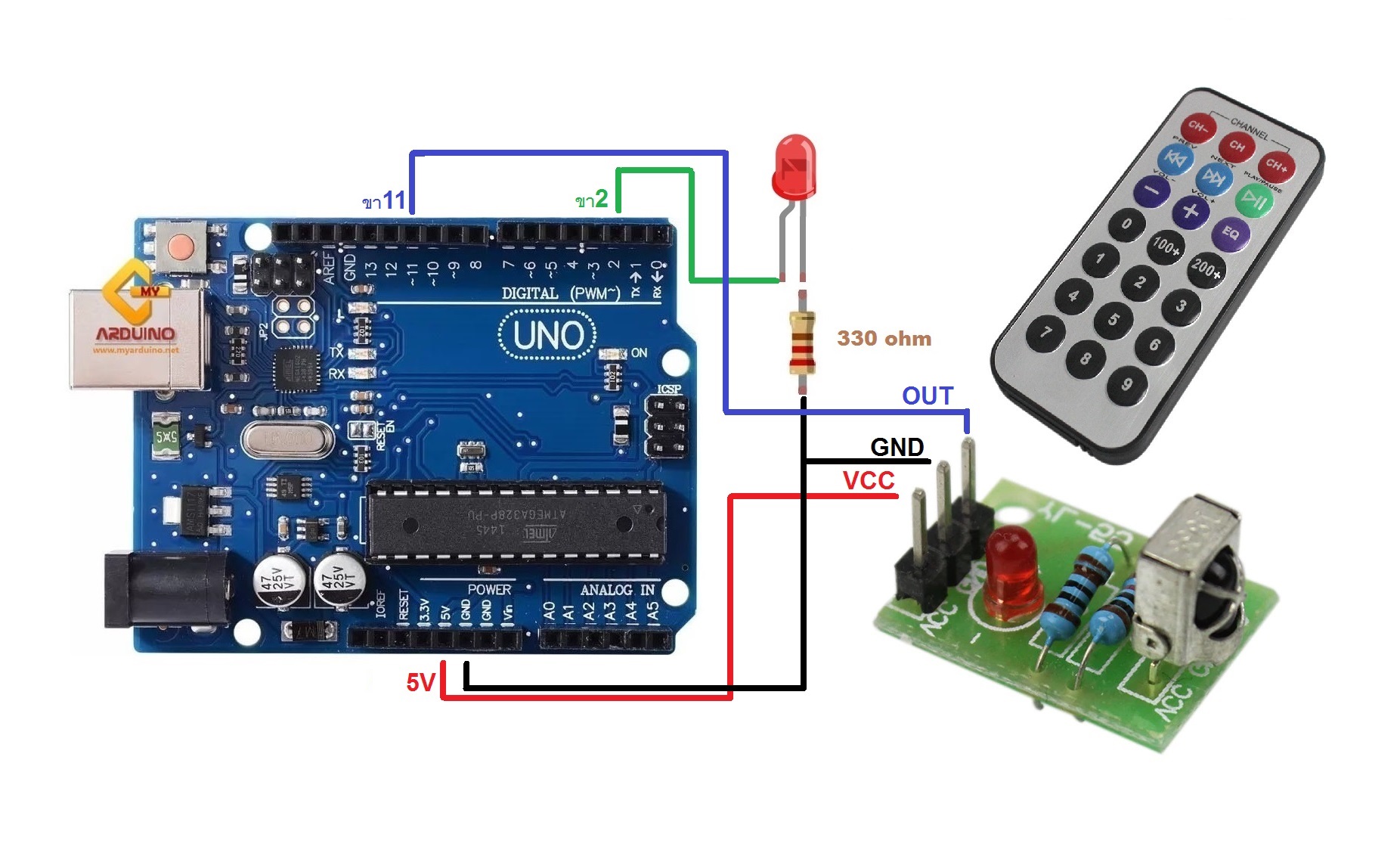

int receiver = 11;

IRrecv irrecv(receiver); //create a new instance of receiver

decode_results results;

void setup() {

 Serial.begin(9600);

 irrecv.enableIRIn(); //start the receiver

}

void loop() {

 if (irrecv.decode(&results)) { //we have received an IR

 Serial.println (results.value, HEX); //display HEX

 irrecv.resume(); //next value

 }
