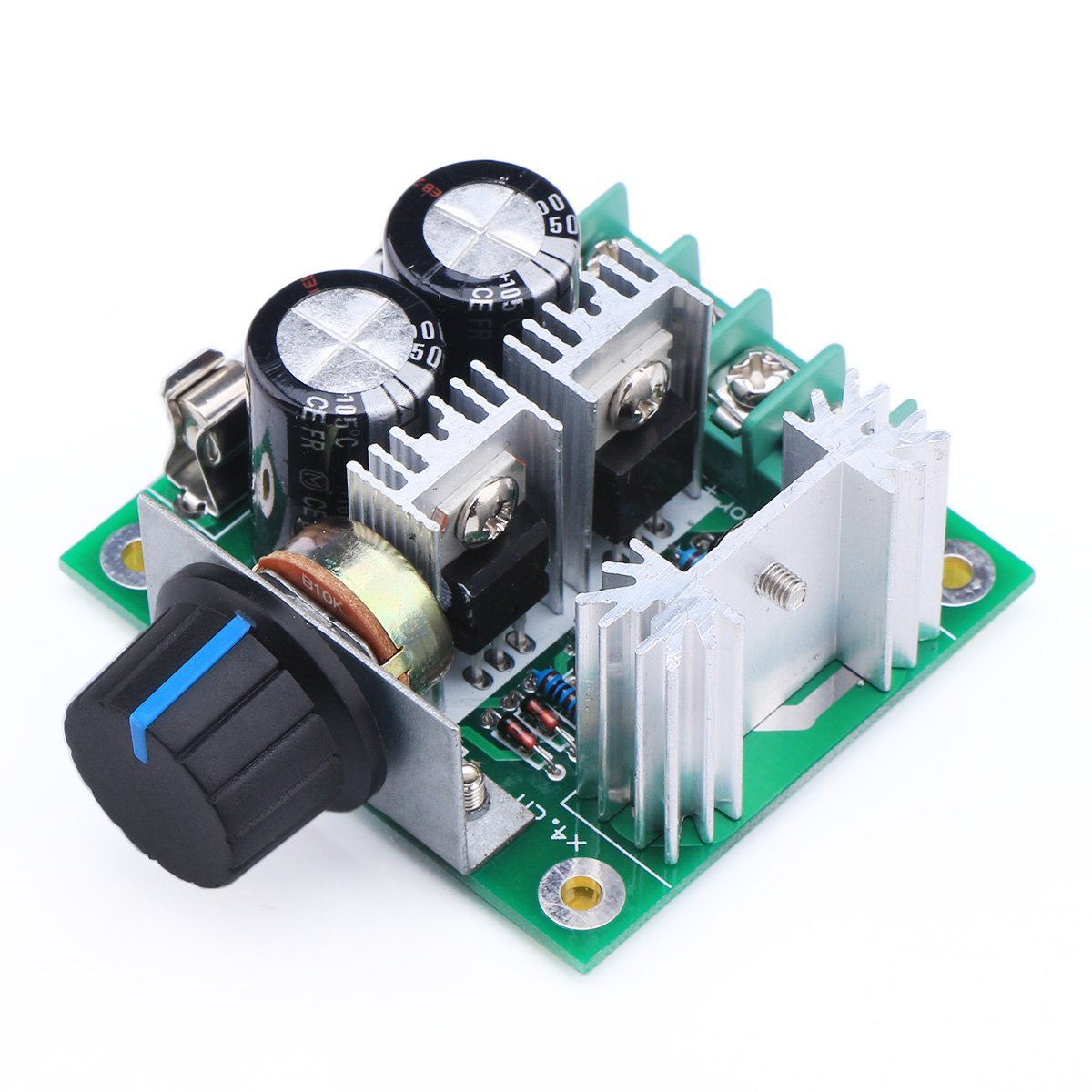

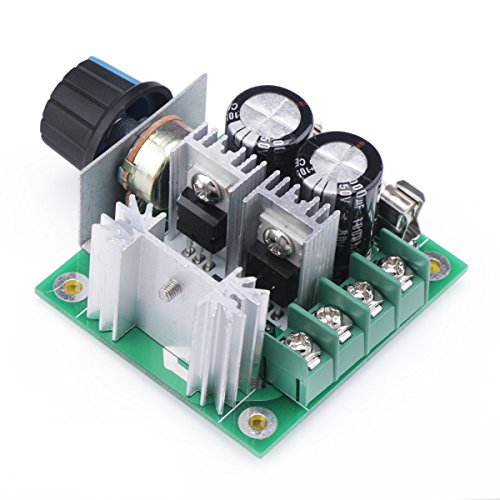

Stepless PWM Motor Speed Controller DC12V-40V 10A

Stepless PWM Motor Speed Controller DC12V~40V 10A

โมดูลควบคุมความเร็วมอเตอร์ Stepless โดยใช้ PWM รองรับแรงดัน DC12V-40V กระแสสูงสุด 10A สามารถนำไปใช้หรี่หลอดไส้ อุปกรณ์ควบคุมอุณหภูมิได้อีกด้วย

Pulse Width Modulation Module DC12V~40V 10A PWM Controller for Motor Speed Control Thermostat Dimmer Temp Control etc

Stepless PWM Motor Speed Controller Parameters:

• Operating voltage: DC 12V~40V
• Control Power: 0.01~400W
• Quiescent Current: 0.02A (standby)
• PWM duty cycle: 10% -100% stepless
• PWM Frequency: 13 khz
• With 10A fuse

Stepless PWM Motor Speed Controller Descriptions:

• It adopts 1.6mm FR-4 PCB, allowing more stable performance.
• With reverse polarity protection and high-current protection, thus it is safe to use.
• Please note that the module will burn when its wires are connected incorrectly.
• The board can control motor speed to change between 10% to 100%
