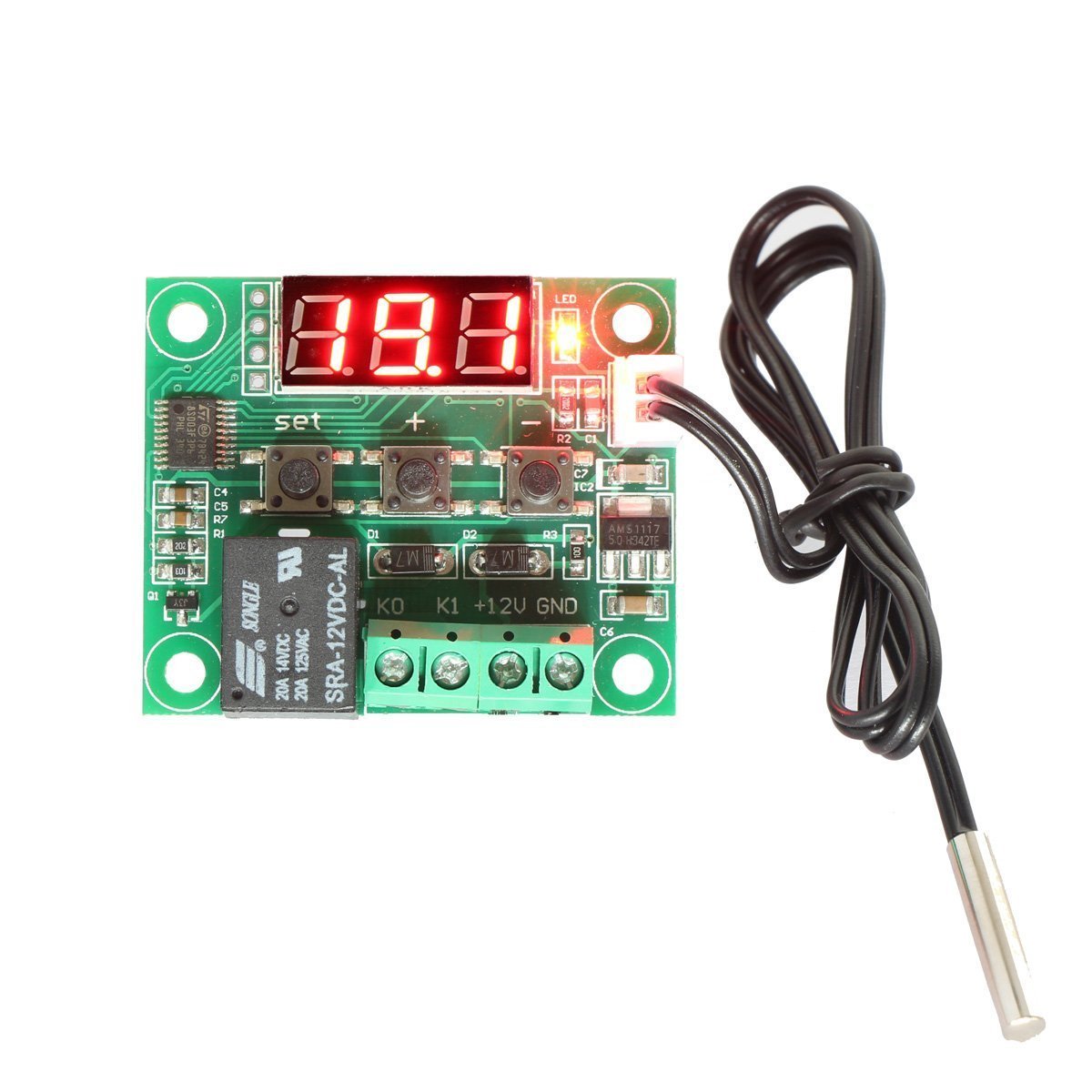

W1209 Digital Thermostat Temperature Control Switch 12V + Sensor Probe

W1209 Digital thermostat Temperature Control Switch 12V + Sensor Probe -50-110°C
บอร์ดควมคุมอุณหภูมิพร้อมจอแสดงผล สามารถตั้งอุณหภูมิเพิ่อปิดเปิด Relay ได้ในตัว โดยไม่ต้องต่อ Arduino

Specifications:

• Temperature range :-50-110 ํC

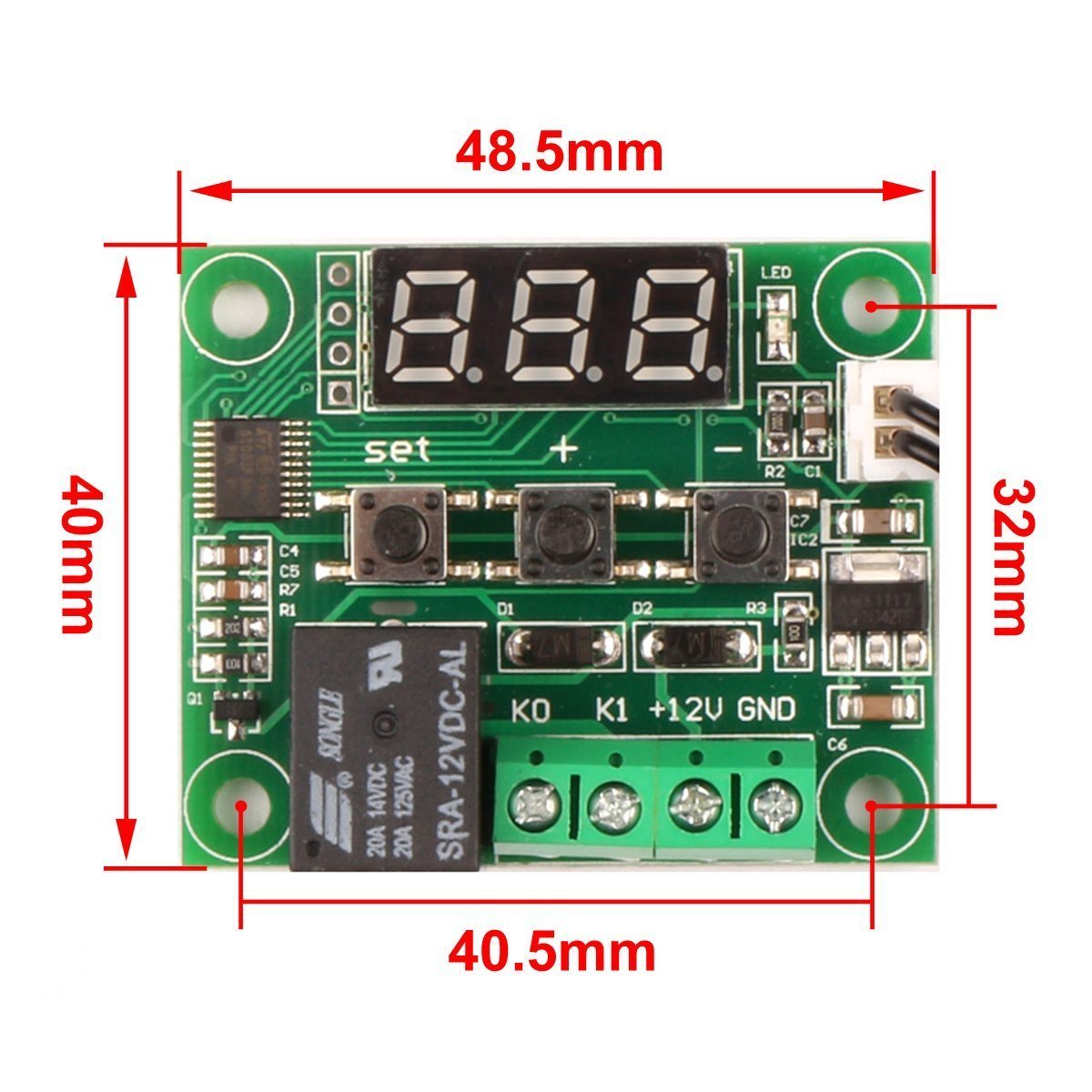

• Dimensions: 48.5 * 40mm
• Temperature control mode: ON / OFF
• Resolution When temperature is 0.1 ํC, the resolution is -9.9~99.9, other temperature segment is 1 ํC
• Control accuracy: 0.1  ํC
• Hysteresis accuracy: 0.1 ํC
• Refresh rate: 0.5S
• High temperature protection： 0-110 ํC
• Supply voltage: DC 12V
• Static current: ≤ 35MA, attract current ≤ 65MA
• Output voltage: DC 12V
• Output power: 20A relay
• Measurement input: NTC (10K 0.5%) Waterproof Sensor
• Environmental requirements: -10 ~ 60  ํC Humidity 20% -85%

Instructions for user

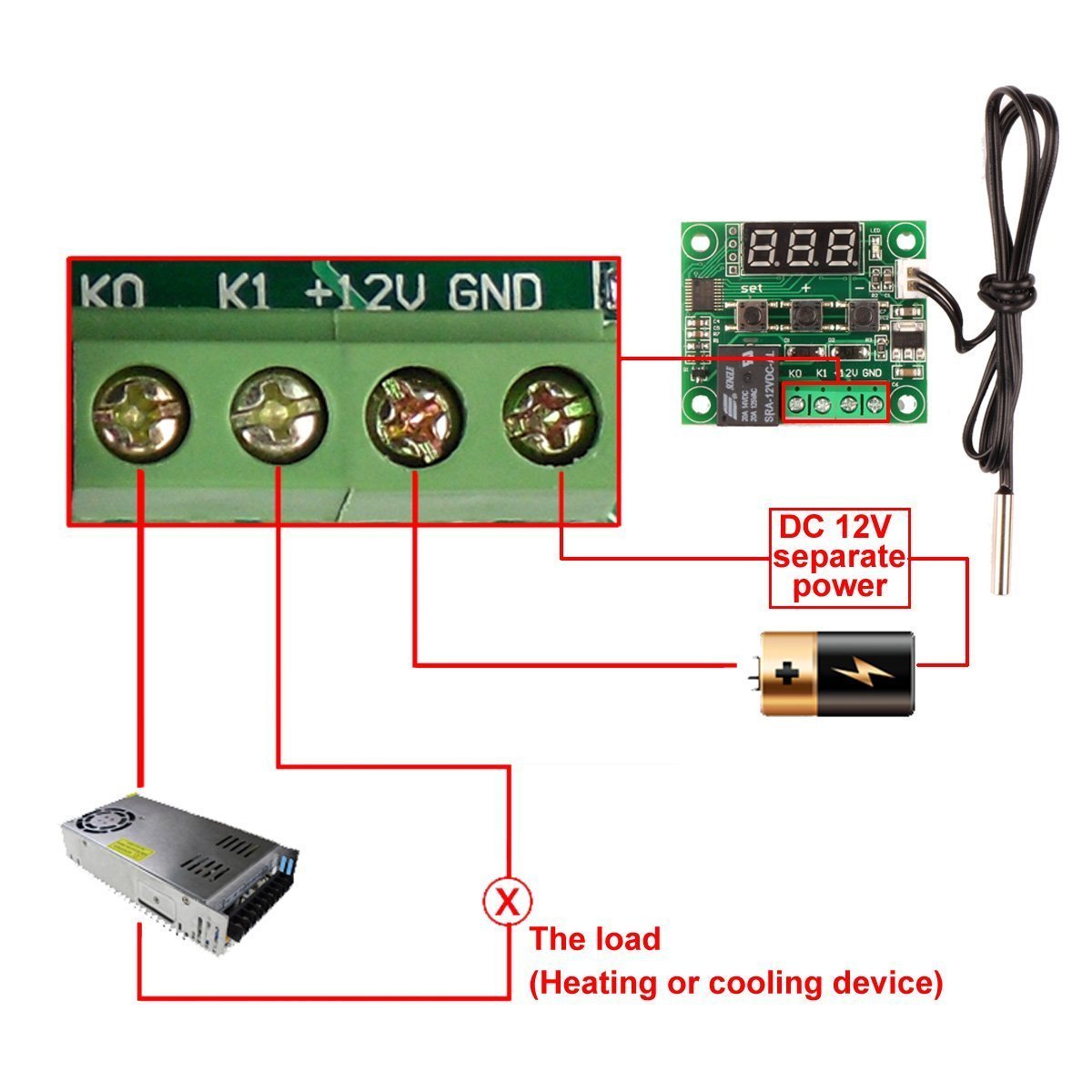

Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease), press "SET" to confirm the setting and return, controller
automatically performs the relay ON/OFF.the thermostat output is 10A relay, meet a variety of high-power loads,

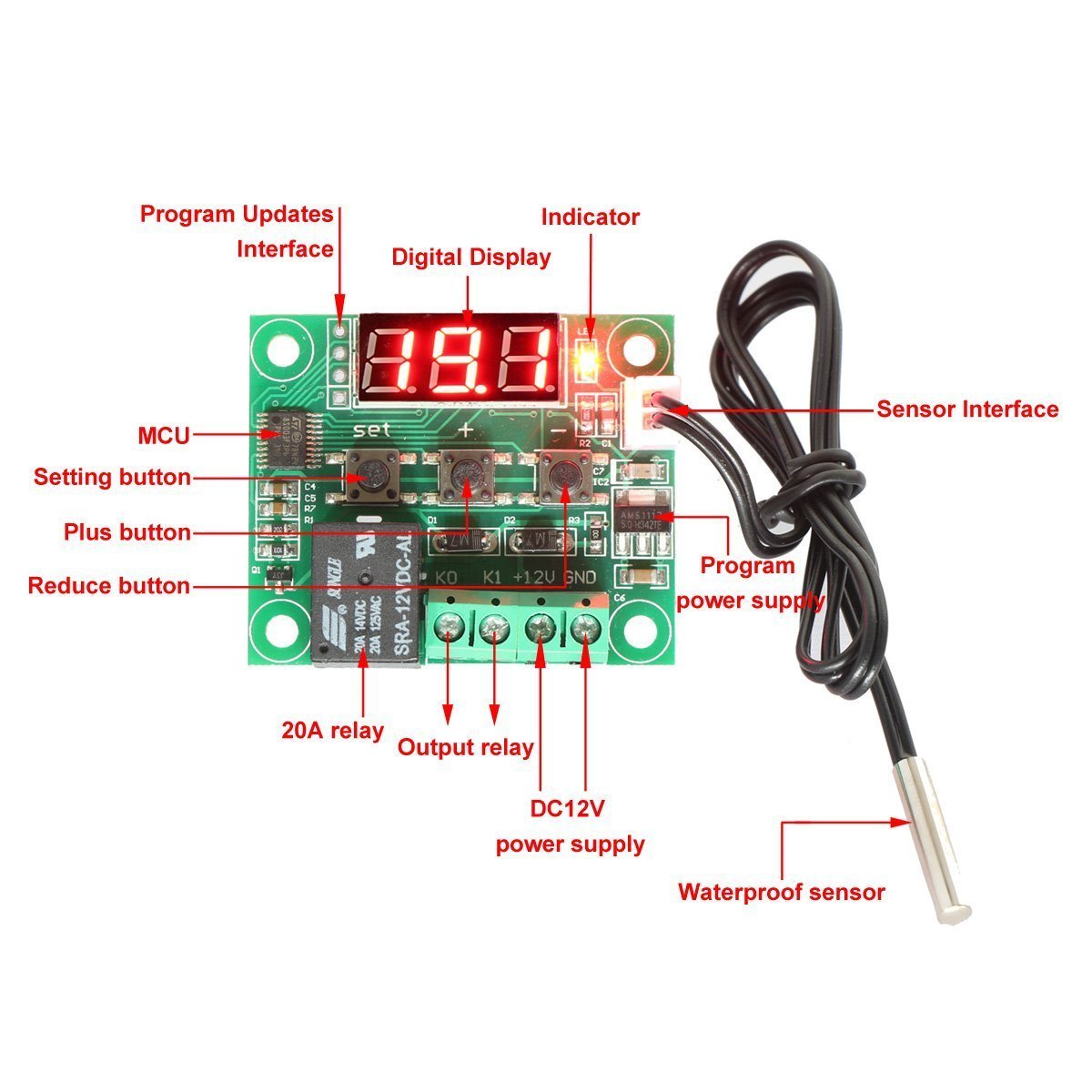

LED Indicator: LED off indicates the relay off; Lighting,indicates the relay is closed.
Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm
Long press the "SET" button to enter the main menu settings, press " + or - " to switching between P0-P6,then long press "SET" or 10 seconds without keystrokes to confirm the setting and return.

Buttons:

• P0 :Cooling / Heating; Range: C/H; Default: C
• P1 :Hysteresis Setting; Range:0.1-15; Default: 2
• P2 :Highest Setting Limit; Range:110; Default: 110
• P3: Lowest setting Limit; Range:-50; Default: -50
• P4 :Temperature Correction; Range:-7-7°c; Default: 0°c
• P5: Delay Start Time; Range:0-10 Minute; Default: 0
• P6: Key Tone Switch; Range:0-110; Default: Off
• When the Thermostat is power off, long press "- or +", you can restore the factory settings
