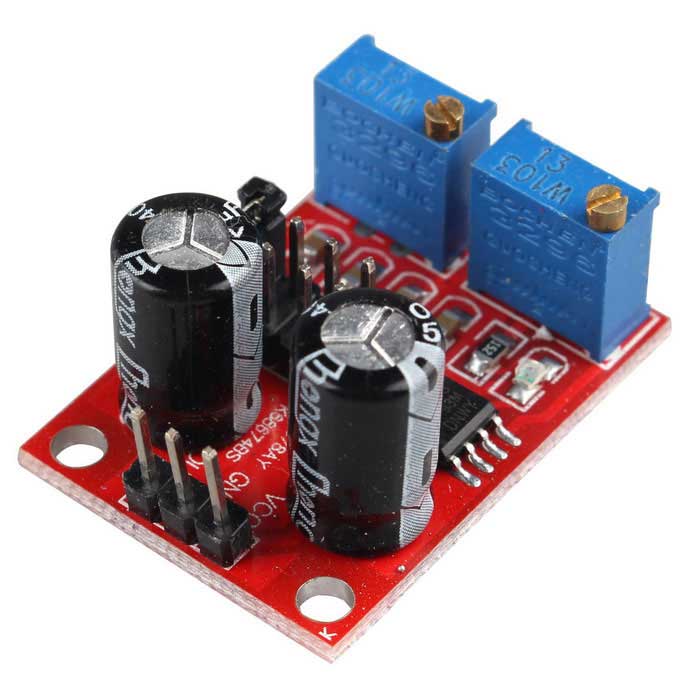

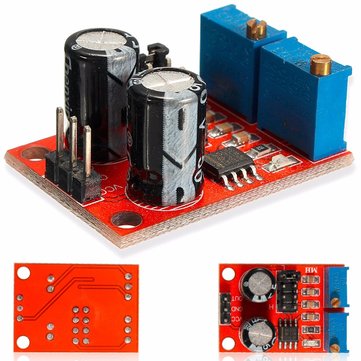

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator

โมดูลสร้างความถี่สัญญาณแบบ Square Wave สามารถปรับค่าความถี่ และค่าดิวตี้ไซเคิลได้ มีไฟ LED แสดงผลตามสัญญาณเอาต์พุต รองรับไฟเลี้ยง 5-12V

คุณสมบัติเพิ่มเติมโมดูลสร้างความถี่ NE555 Pulse Frequency Duty Cycle Adjustable

• Size: 31mm * 22mm;
• Main chip: NE555;
• Input Voltage: 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;
• Input current: >=100MA
• Output amplitude: 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)
• Maximum output current: >=15MA (5V power supply, V-PP greater than 50%),
                          >=35MA (12V power supply, V-PP greater than 50%)
• Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);

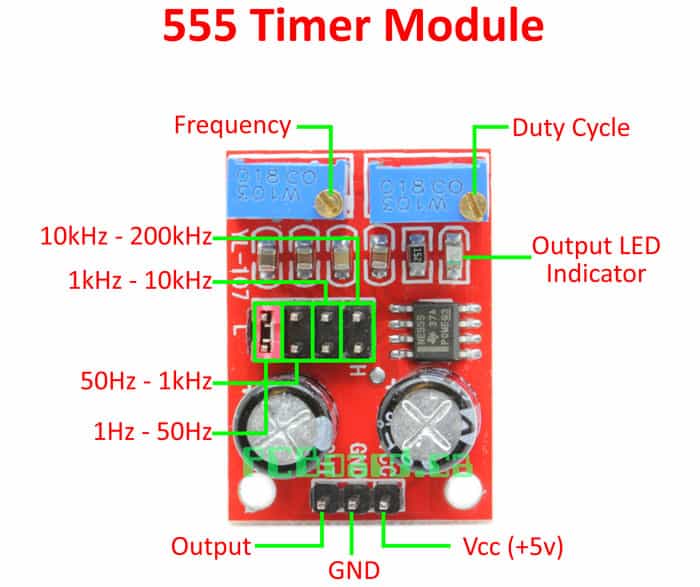

• The output requency range is selectable:
  • LF file: 1Hz ~ 50Hz
  • IF file: 50Hz ~ 1kHz
  • High-frequency file: 1KHz ~ 10kHz
  • HF file: 10kHz ~ 200kHz
• The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable;adjusting the duty cycle will change the frequency;

• The output frequency is adjustable:
  • Period T = 0.7 (RA +2 RB) C
  • RA, RB is 0-10K adjustable;
  • Low profile when C = 0.001UF;
  • IF stalls C = 0.1UF;
  • High-frequency file C = 1UF;
  • HF stalls C = 100UF;
  • so buyers can calculate the frequency of the waveform.

NE555 Module Application:

• As a square wave signal generator,generates a square wave signal used for experimental development.
• Used to drive a stepper motor for generating a square wave drive signal.
• Generate adjustable pulse for MCU.
• Generate adjustable pulse,to control circuitry associated.
