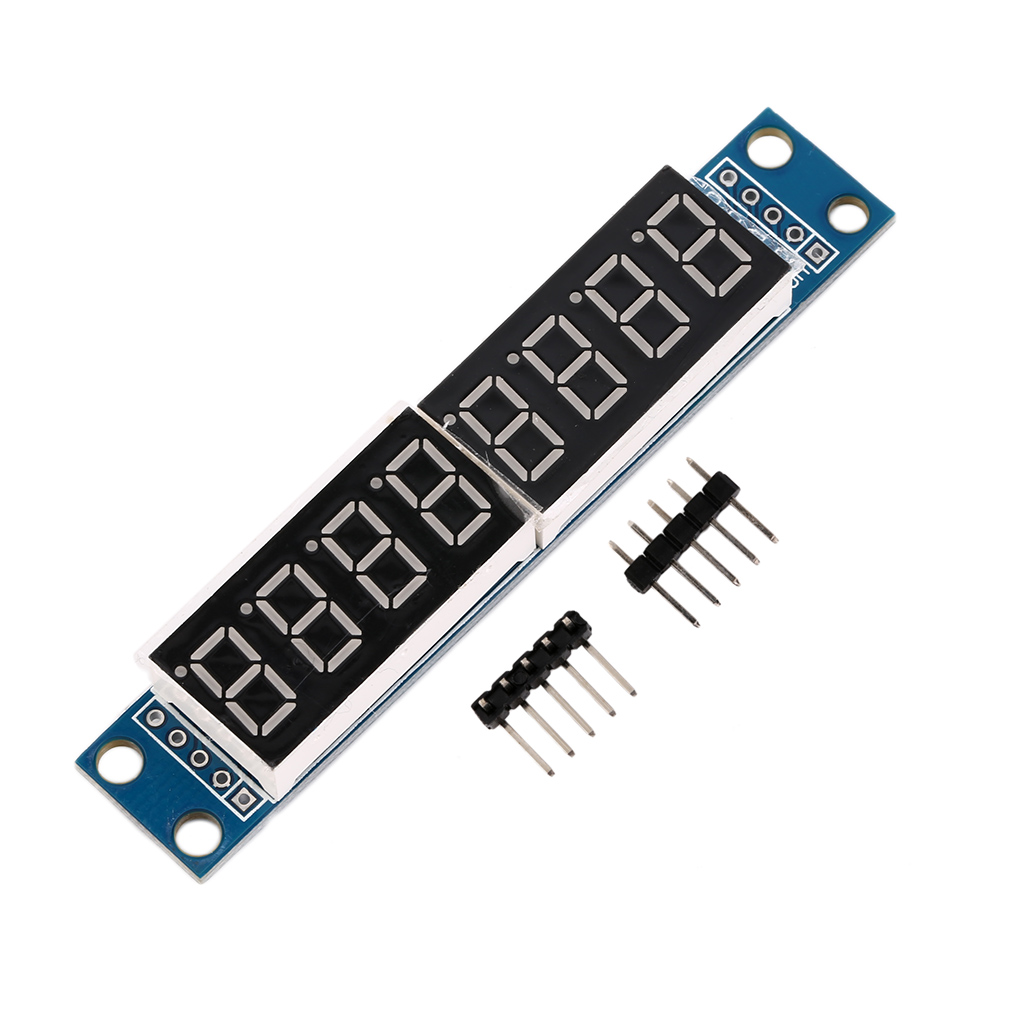

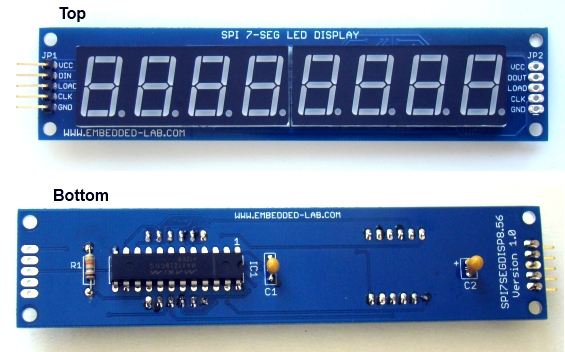

7 Segment 8-Digit with MAX7219 Module โมดูลแสดงผลตัวเลข 8 หลัก

 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73

//We always have to include the library
#include "LedControl.h"

/*
 Now we need a LedControl to work with.
 ***** These pin numbers will probably not work with your hardware *****
 pin 12 is connected to the DataIn
 pin 13 is connected to the CLK
 pin 10 is connected to LOAD
 We have only a single MAX72XX.
 */
LedControl lc=LedControl(12,13,10,1);

/* we always wait a bit between updates of the display */
unsigned long delaytime=250;

void setup() {
/*
 The MAX72XX is in power-saving mode on startup,
 we have to do a wakeup call
 */
lc.shutdown(0,false);
/* Set the brightness to a medium values */
lc.setIntensity(0,8);
/* and clear the display */
lc.clearDisplay(0);
}


/*
 This method will display the characters for the
 word "Arduino" one after the other on digit 0.
 */
void writeArduinoOn7Segment() {
lc.setChar(0,0,'a',false);
delay(delaytime);
lc.setRow(0,0,0x05);
delay(delaytime);
lc.setChar(0,0,'d',false);
delay(delaytime);
lc.setRow(0,0,0x1c);
delay(delaytime);
lc.setRow(0,0,B00010000);
delay(delaytime);
lc.setRow(0,0,0x15);
delay(delaytime);
lc.setRow(0,0,0x1D);
delay(delaytime);
lc.clearDisplay(0);
delay(delaytime);
}

/*
 This method will scroll all the hexa-decimal
 numbers and letters on the display. You will need at least
 four 7-Segment digits. otherwise it won't really look that good.
 */
void scrollDigits() {
for(int i=0;i<13;i++) {
lc.setDigit(0,3,i,false);
lc.setDigit(0,2,i+1,false);
lc.setDigit(0,1,i+2,false);
lc.setDigit(0,0,i+3,false);
delay(delaytime);
}
lc.clearDisplay(0);
delay(delaytime);
}

void loop() {
writeArduinoOn7Segment();
scrollDigits();
}
