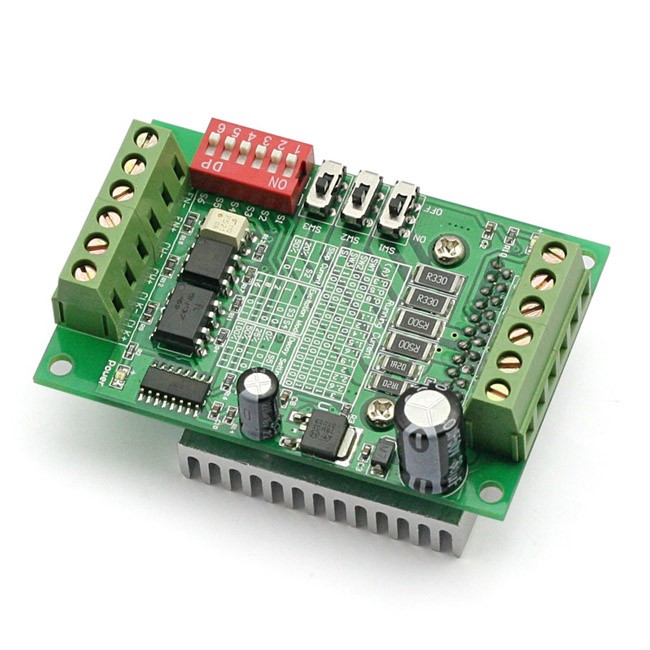

TB6560 3A Stepper Motor Driver Board บอร์ดขับสเต็ปมอเตอร์

TB6560 3A Stepper Motor Driver Board บอร์ดขับสเต็ปมอเตอร์

• Rated maximum output: ± 3A, peak 3.5A.
• Working voltage DC 10V-35V. Recommended to use a switching power supply DC24V power supply.
• Using the Toshiba TB6560AHQ new original chip with low voltage shutdown, overheating stop and over current protection circuit to ensure optimal performance.
• For two-phase within 42,57 stepping 3A / four-phase / of line four / six-wire stepper motor, and is not suitable for more than 3A stepper motor. Automatic half current function.
• 6N137 high-speed optical coupling, guarantee high speed without losing step.
• Subdivision: whole step, half-step, step 1/8, 1/16 step, a maximum of 16 Subdivisions.

คุณสมบัติเพิ่มเติม TB6560 3A Stepper Motor Driver

• current grade-by-adjustable to meet your demand for a variety of applications.
• semi-automatic flow adjustable.
• 6N137 high-speed optical coupling, guarantee high speed without losing step.
• plate printed setup instructions operation without manual also.
• thick teeth radiator, good heat dissipation.

Interfaces การต่อสาย TB6560:

• +5-24V, GND :: The power supply for motor
• A+ A- :: Motor phase A
• B+ B- :: Motor phase B
• CLK+ CLK- :: Pulse positive and negative
• CW+ CW- :: Direction positive and negative
• EN+ EN- :: Enable positive and negative

TB6560 3A Stepper Motor Driver Specification:

• Working Voltage: 5-24 VDC
• Signal TTL Logic
• 3A Max Current Peck and Continues
• Switch Mode Running Current
