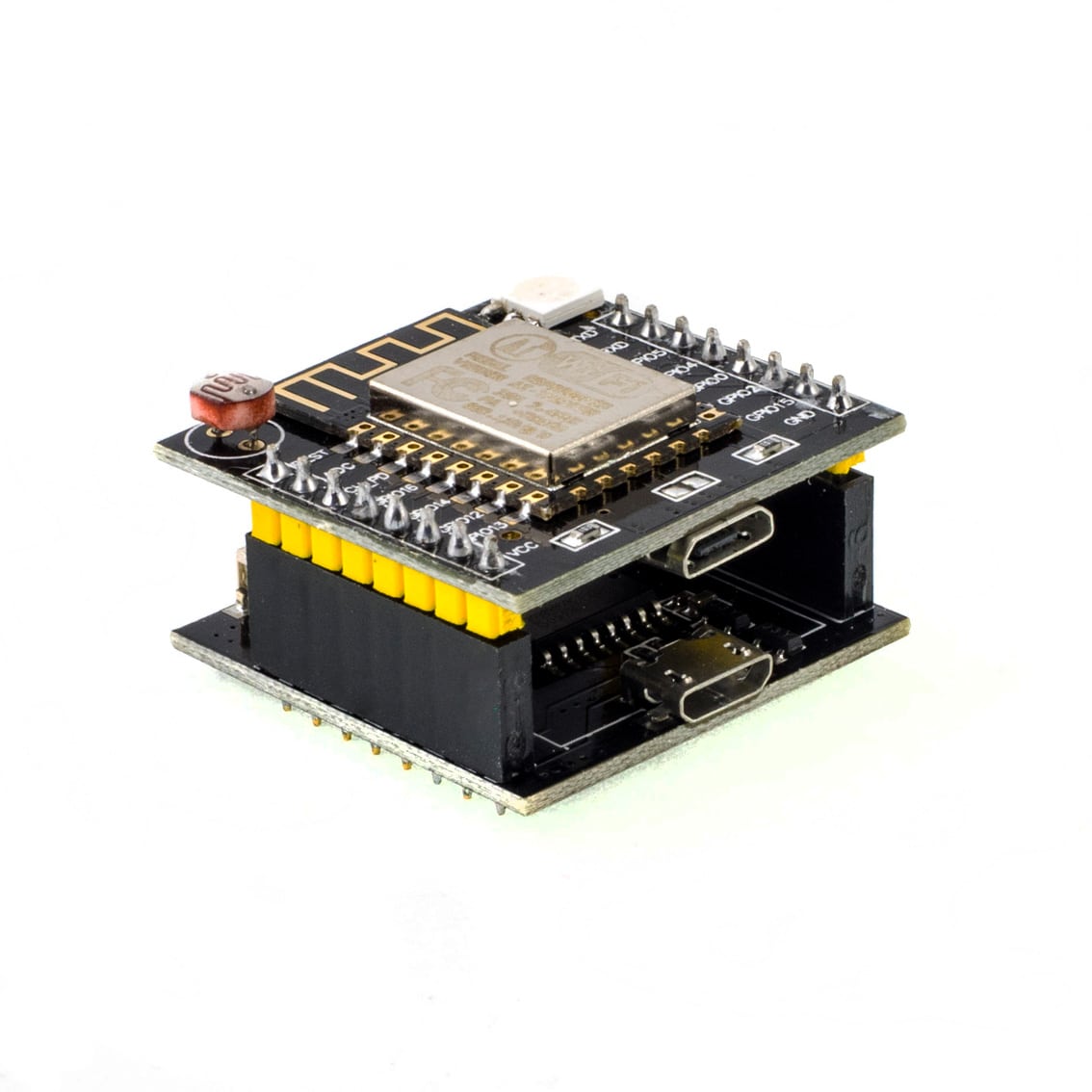

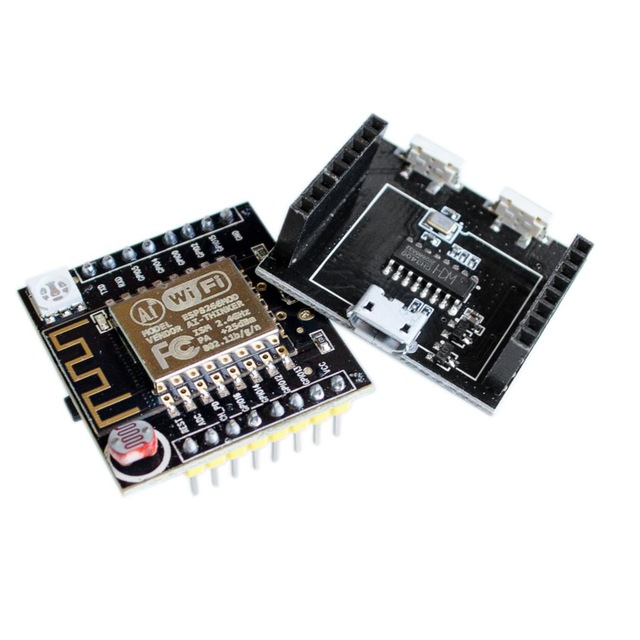

Witty ESP8266 ESP-12F with Cloud Development Board

Witty ESP8266 ESP-12F with Cloud Development Board

รายละเอียดเพิ่มเติม Witty Cloud ESP8266 ESP-12F:

• 1. This cheap and small Wifi transciever is the perfect solution for home Automation and IoT applications.
• It can be the replacement of your NRF24L01,and can also talk to your Wifi router directly through the UART MCU's (Rx, Tx).
• 2. The ESP-12 module is one of the most complete of the ESP family as it allows you to use biggest amount of pins of all of them.
• You can program this module to work stand alone with the Arduino IDE or with LUA as NodeMCU.
• 3. It has an LDR and a WS2812 led already on board for your projects.
• The board comes with a CH40 micro USB module to program it.
• 4. The ESP8266 highly integrated chip, including antenna switch balun, power management converter, so with minimal external circuitry.
• The system is equipped with ESP8266 manifested leading features are: energy saving VoIP quickly switch between the sleep / wake patterns, with low-power operation adaptive radio bias, front-end signal processing functions.
• 5. This version, the ESP8266-03 is one of the smallest versions of this module. It includes a buil-in ceramic antenna.

คุณสมบัติ Witty Cloud ESP8266 ESP-12F with Cloud Development Board

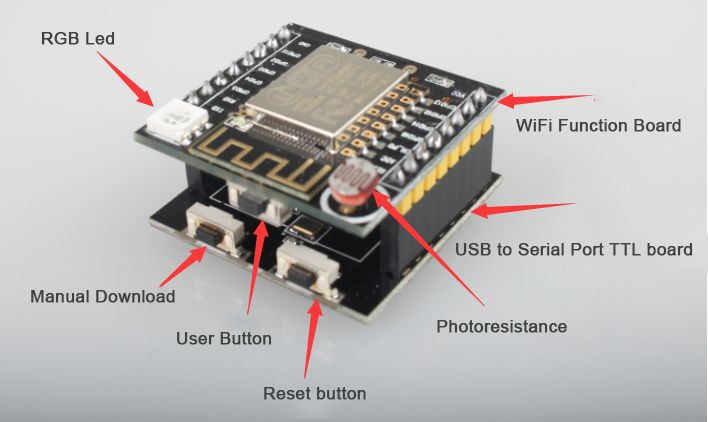

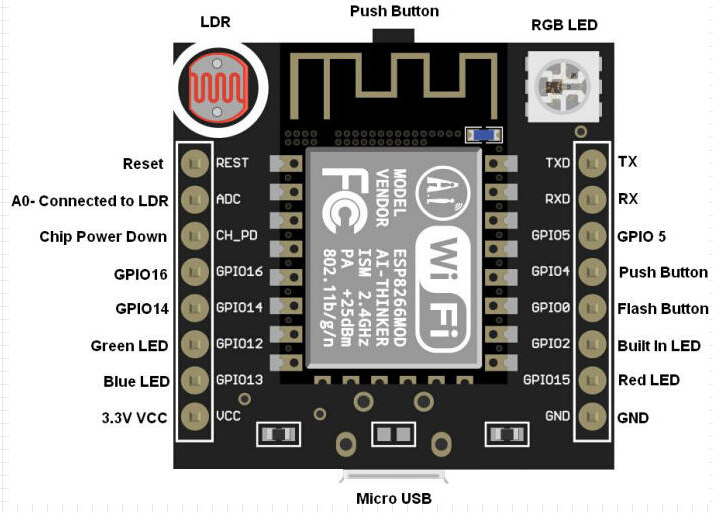

• 1. LDR Lignt Sensor on board
• 2. WS2812 Led on board
• 3. 3x tactile buttons (1x in the Witty board and 2x in theCH340 board)
• 4. Supports 3 modes: AP,STA,AP+STA
• 5. Dimensions: 24mm x 16mm
• 6. Micro USB connection for power and/or programming
