KY-031 Arduino Knock Impact Sensor โมดูลตรวจจับการชน การกระแทก

This device is a lot like the KY-002 Vibration Sensor in that it registers a jolt or a shock.  About the only difference is that my testing showed it to be a less sensitive. In other words, it takes a more powerful knock or jolt to register an impact.

The device itself is nothing more than a switch with a pull-up resistor.

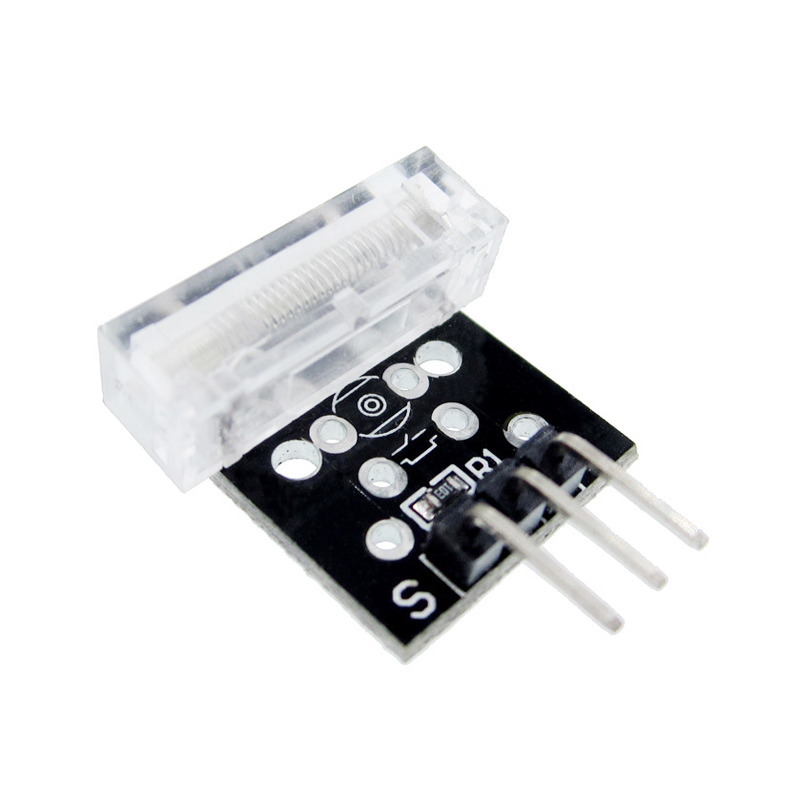

Three connections to your Arduino is all you need.  The pins on the knock sensor that you will connect to are shown in the picture below:

//Henry's Bench
//KY-031 Knock Sensor Tutorial

int knockPin = 10; // Use Pin 10 as our Input
int knockVal = HIGH; // This is where we record our shock measurement
boolean bAlarm = false;

unsigned long lastKnockTime; // Record the time that we measured a shock


int knockAlarmTime = 500; // Number of milli seconds to keep the knock alarm high


void setup ()
{
  Serial.begin(9600);
  pinMode (knockPin, INPUT) ; // input from the KY-031
}
void loop ()
{
  knockVal = digitalRead (knockPin) ; // read KY-031 Value

  if (knockVal == LOW) // If we see a knock
  {

    lastKnockTime = millis(); // record the time of the shock
    // The following is so you don't scroll on the output screen
    if (!bAlarm){
      Serial.println("KNOCK, KNOCK");
      bAlarm = true;
    }
  }
  else
  {
    if( (millis()-lastKnockTime) > knockAlarmTime && bAlarm){
      Serial.println("no knocks");
      bAlarm = false;
    }
  }
}
