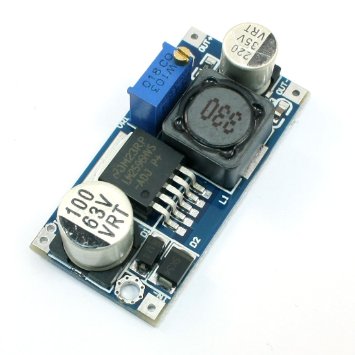

DC-DC Adjustable Step Down LM2596HVS Buck Converter 4.5-53V to 3V-40V 3A Power Supply Module

DC-DC Adjustable Step Down LM2596HVS  Buck Converter 4.5-53V to 3V-40V 3A Power Supply Module

โมดูล Step down แปลงไฟลง DC-DC Adjustable Step-Down Module LM2596HVS โมดูล LM2596HVS รับ Input DC ได้ตั้งแต่ 4.5V-53V Output 3V-40V กระแสสูงสุด 3A

คุณสมบัติโมดูล Step Down LM2596HVS:

• Type / name:LM2596HVS DC-DC step-down module
• Input Voltage:4.5V ~ 53V
• Output Voltage:3V ~ 40V
• Output Current:3A (max)
• Conversion efficiency:92% (the highest)
• Output Ripple:<30mV
• Switching frequency:150KHz
• Operating Temperature:-45 ℃ ~ +85 ℃
• Size:43mm * 21mm * 14mm (L * W * H)

• IN-IN + input Positive Input Negative!
• Positive output OUT + OUT-output negative
• Input voltage range: DC 4.5V to 53V (input voltage must be greater than the output voltage to 1.5V or more high.Could not boost)
• Output voltage range: DC 3V to 40V voltage is continuously adjustable, high efficiency (up to 92%) the maximum output current of 3A.
• Measured 12V input, 5V output current is 1A load regulation rate of less than 1%

Note: This is the step-down module, the input voltage must be higher than the output voltage.
Output current is greater than 2.5A (or output power greater than 10W) to work long hours, please add heat sink.
