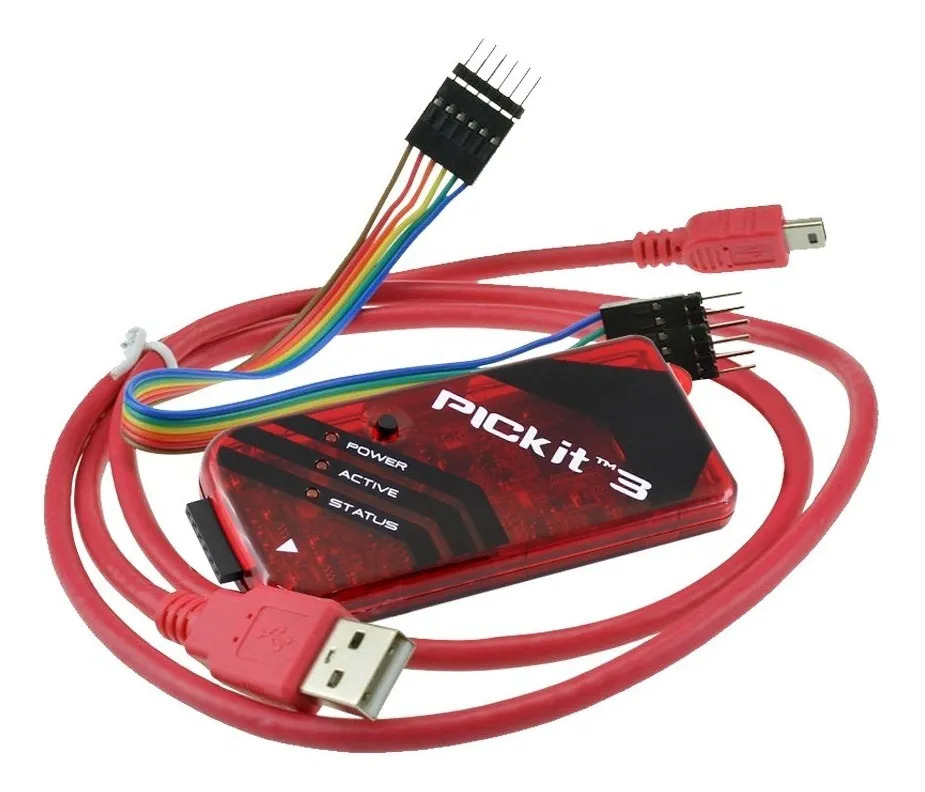

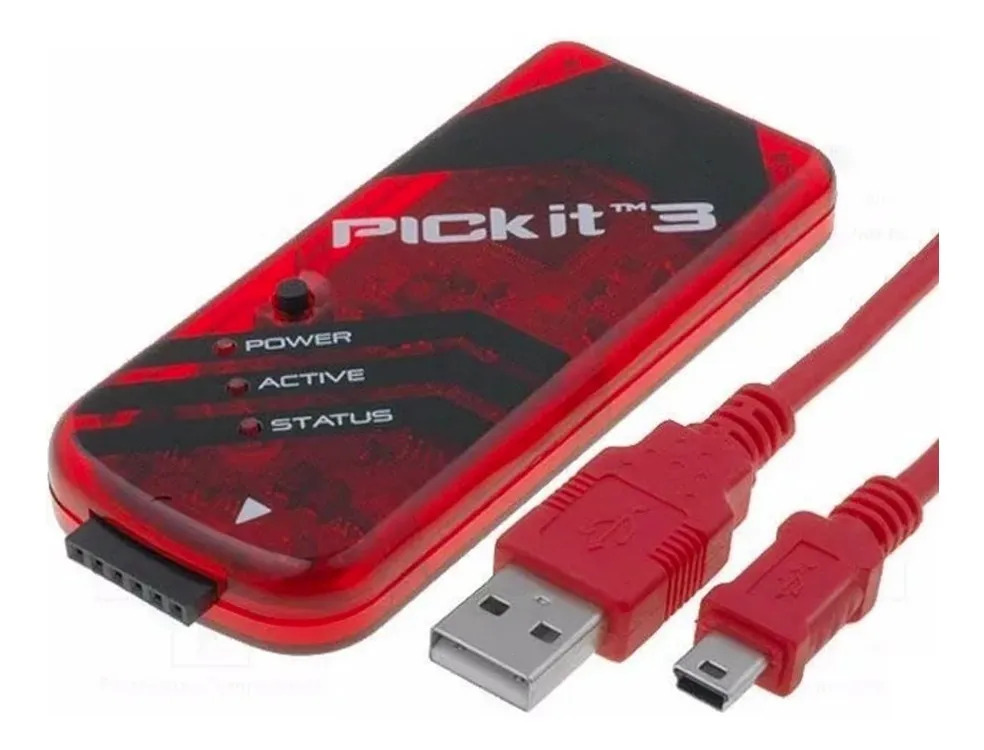

เครื่องโปรแกรมไมโครคอนโทรลเลอร์ PIC KIT PICKIT 3 PIC Programmer

เครื่องโปรแกรมไมโครคอนโทรลเลอร์ PIC KIT PICKIT 3 PIC Programmer

Download PICkit3 Programmer Application v3.10

(https://ww1.microchip.com/downloads/en/DeviceDoc/PICkit3%20Programmer%20Application%20v3.10.zip)

PICKIT 3 Programmer Description:

• USB (Full speed 12 Mbits/s interface to host PC)
• Real-time execution
• MPLAB IDE compatible (free copy included)
• Built-in over-voltage/short circuit monitor
• Firmware upgradeable from PC/web download
• Totally enclosed
• Supports low voltage to 2.0 volts (2.0v to 6.0v range)
• Diagnostic LEDs (power, busy, error)
• Read/write program and data memory of microcontroller
• Erase of program memory space with verification
• Freeze-peripherals at breakpoint
• Program up to 512K byte flash with the Programmer-to-Go
• The MPLAB PICkit 3 allows debugging and programming of PIC® and dsPIC® Flash microcontrollers at a most affordable price point using the powerful graphical user interface of the MPLAB Integrated Development Environment (IDE). The MPLAB PICkit 3 is connected to the design engineer\\\'s PC using a full speed USB interface and can be connected to the target via an Microchip debug (RJ-11) connector (compatible with MPLAB ICD 2, MPLAB ICD 3 and MPLAB REAL ICE).

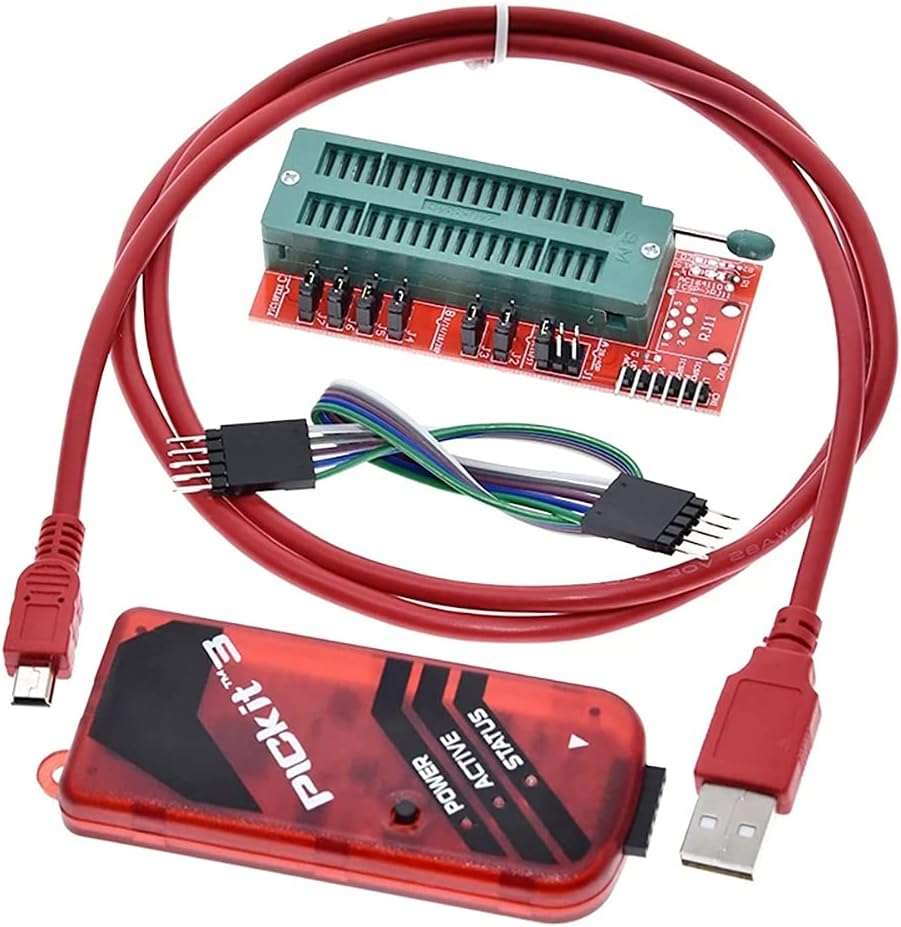

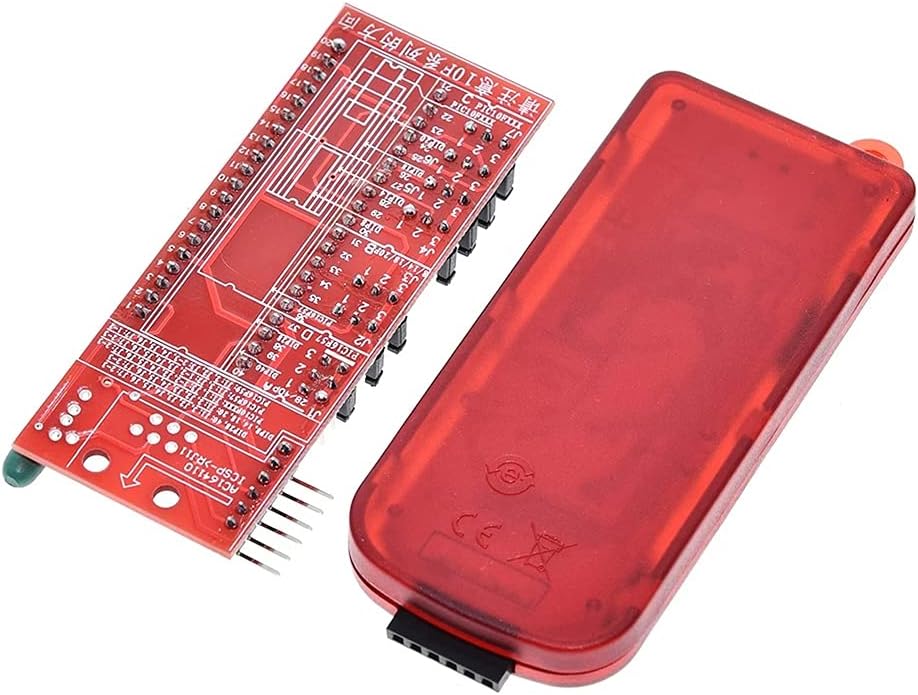

Universal Programmer Seat Description:

Instructions for use PICKIT 3:

The seat for PICKIT 3 supports the following programming microcontroller:

• PIC16/18XX 40PIN Series devices (except 16F59)
• PIC16/18XX 28PIN Series devices (except 16F57)
• PIC16/18XX 18PIN Series devices
• The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

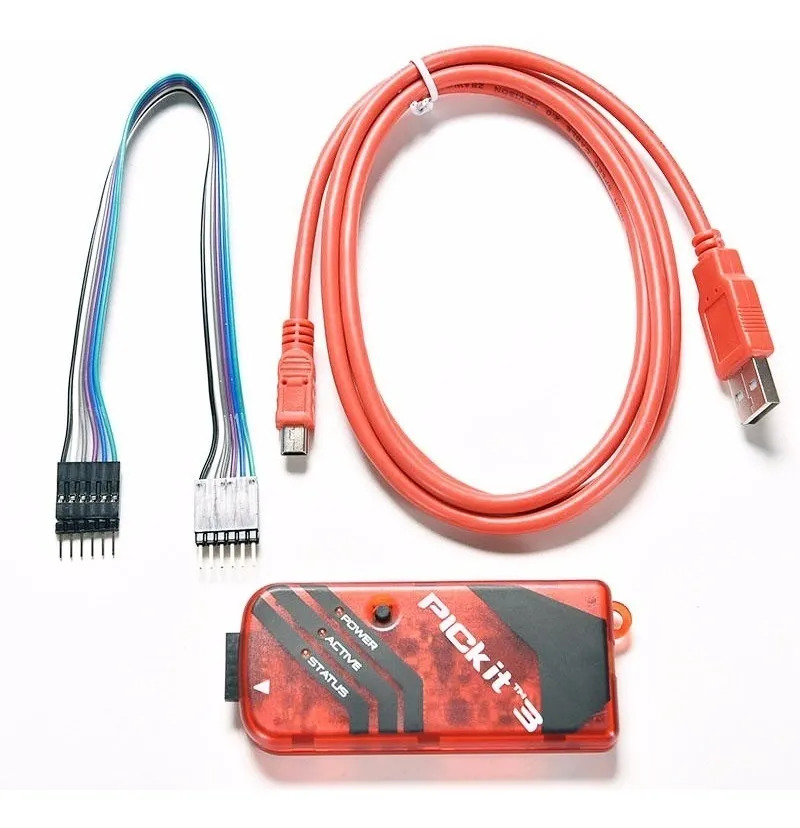

PICKIT 3 Package Included:

• 1 X PICKIT3 Simulator
• 1 X USB cable
• 1 X 6pin cable
• 1 X Universal Programmer Adapter
