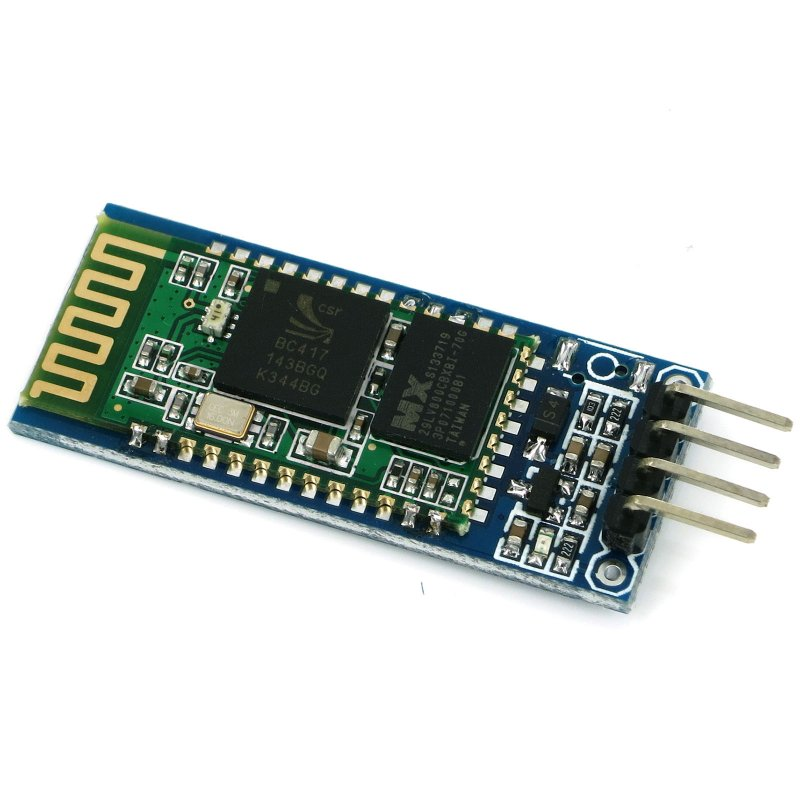

HC-06 Bluetooth Serial Module โมดูลสื่อสารบลูทูธ (HC-06 Slave Mode) ชิพแท้

HC-06 Bluetooth Serial Module โมดูลสื่อสารบลูทูธ (HC-06 Slave Mode)

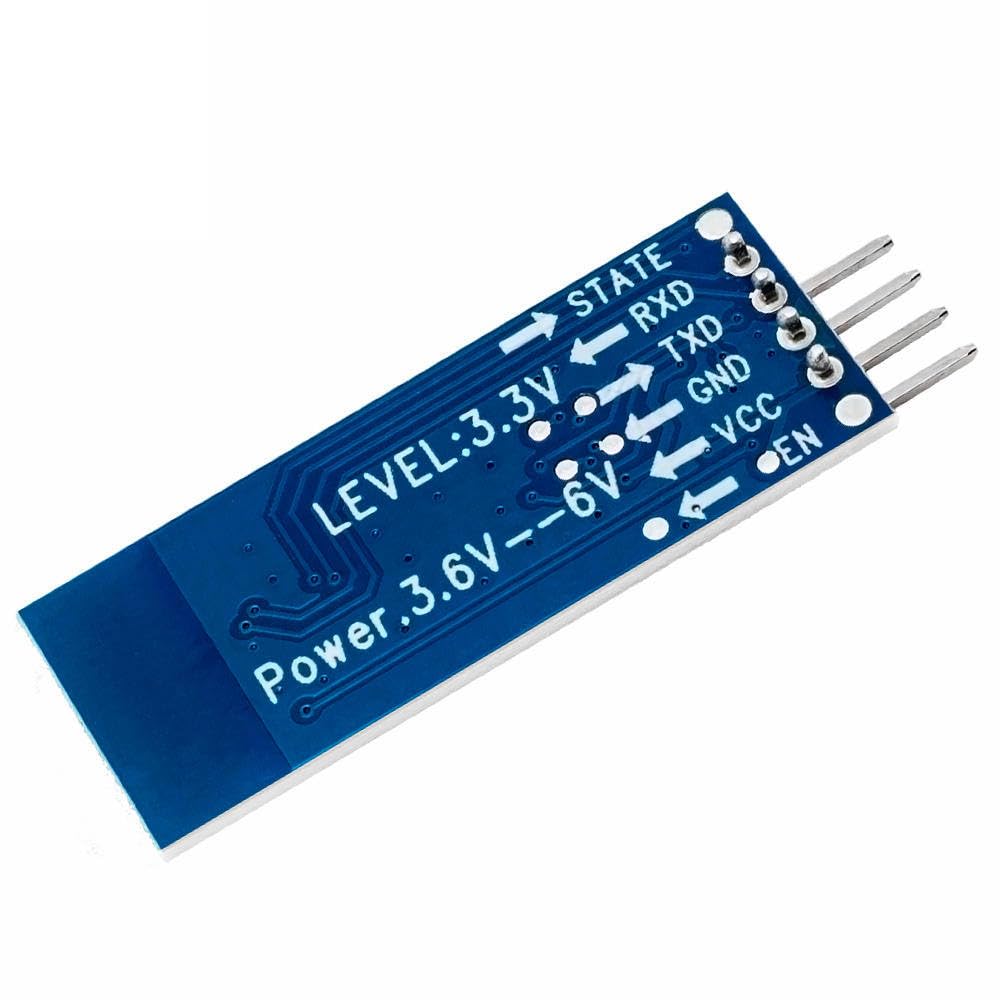

ตัวอย่างการต่อใช้งาน HC-06 กับ Arduino

• HC-06 VCC –> Arduino +5V
• HC-06 GND –> Arduino GND
• HC-06 TXD –> Arduino Pin 0 (RX)
• HC-06 RXD –> Arduino Pin 1 (TX)

HC-06 Description:

• Commercial Series: HC-06 Bluetooth module board Series.
• PC hosted mode: Pair the module with Bluetooth dongle directly as virtual serial.
• Coupled Mode: Two modules will establish communication automatically when powered.
• Compact (3.57cm * 1.52cm), the factory chip production to ensure the placement quality. And sets of transparent heat shrink tubing, dust and beautiful, and anti-static.
• The link from the machine, computer, Bluetooth with Bluetooth function from the function with a variety of hosts, the majority with a Bluetooth-enabled cell phone, PDA, PSP and another intelligent terminal pairing from not pairing between the machine.

HC-06 Specifications:

• Bluetooth protocol: Bluetooth 2.0+ EDR standard
• USB protocol: USB v1.1/2.0
• Operating frequency: 2.4GHz ISM frequency band
• Modulation mode: Gauss frequency Shift Keying
• Transmit power: ≤ 4dBm, second stage
• Sensitivity: ≤-84dBm at 0.1% Bit Error Rate
• Transmission speed: 2.1Mbps (Max) / 160 kbps (Asynchronous)； 1Mbps / 1Mbps (Synchronous)
• Safety feature: Authentication and encryption
• Supported configuration: Bluetooth serial port (major and minor)
• Supply Voltage: +3.3 VDC 50mA
• Operating temperature: -20 to 55℃
• Size: 36.5*16mm
• Weight: 4g
