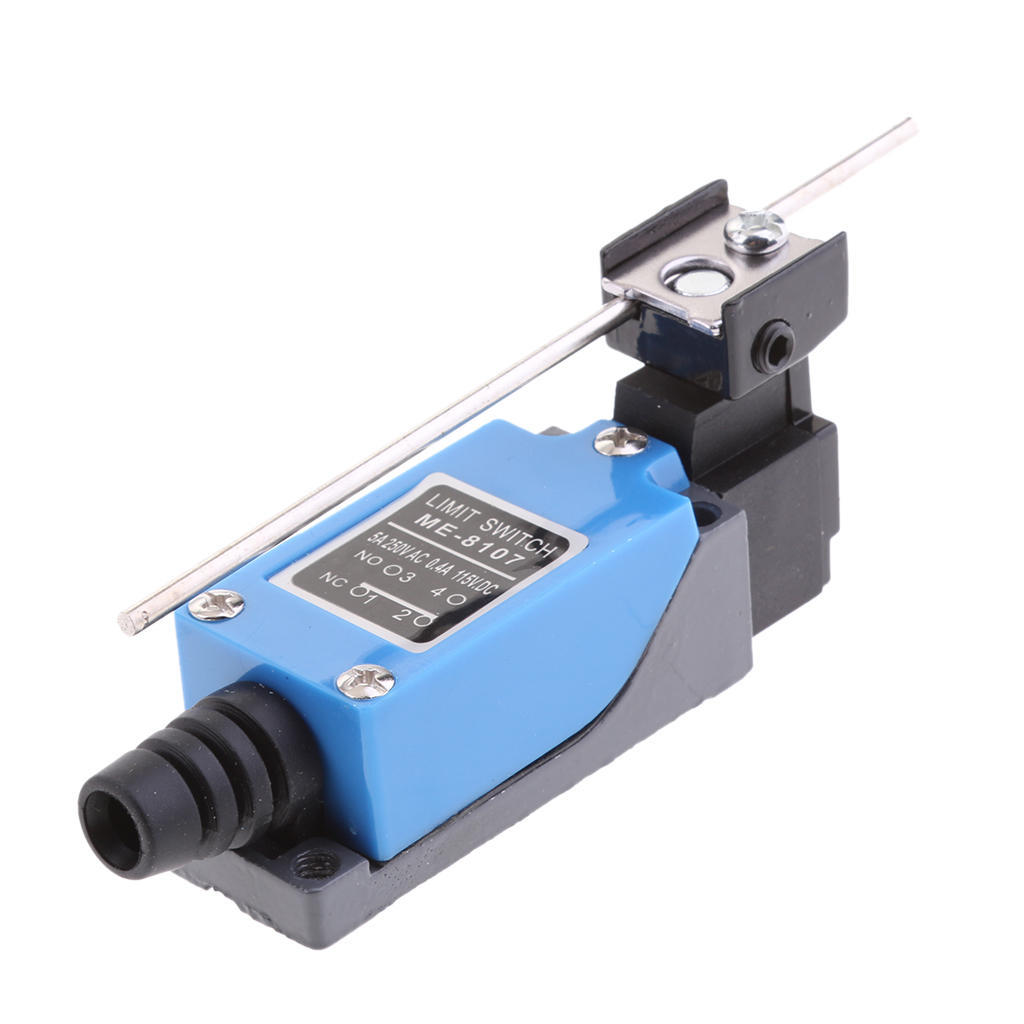

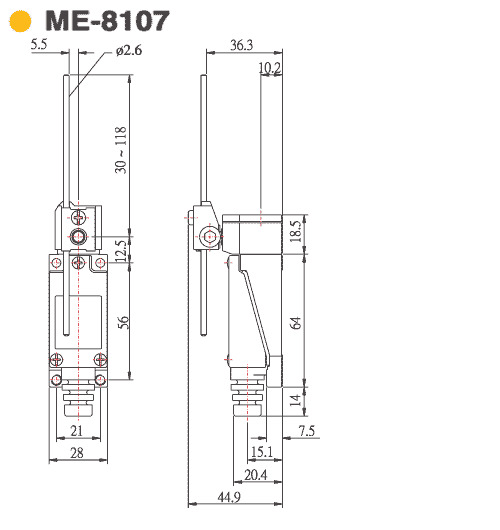

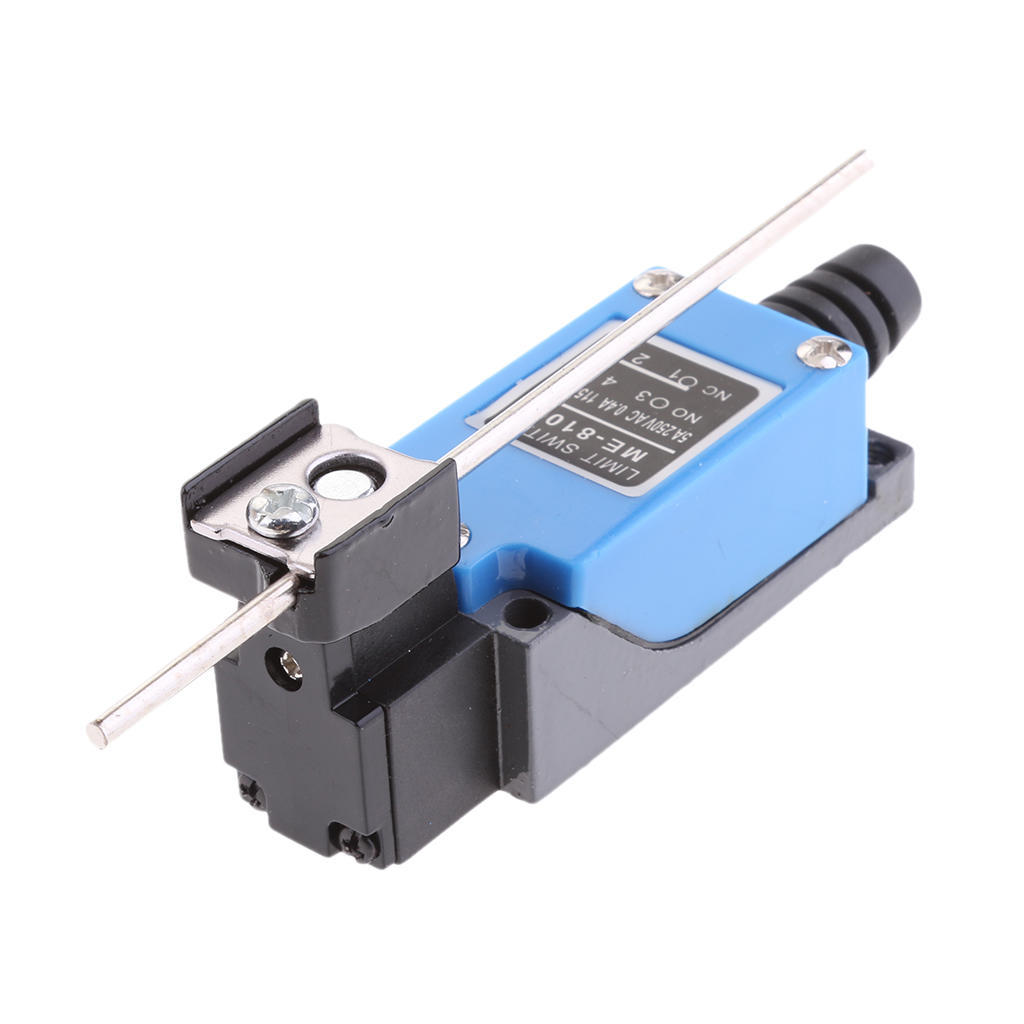

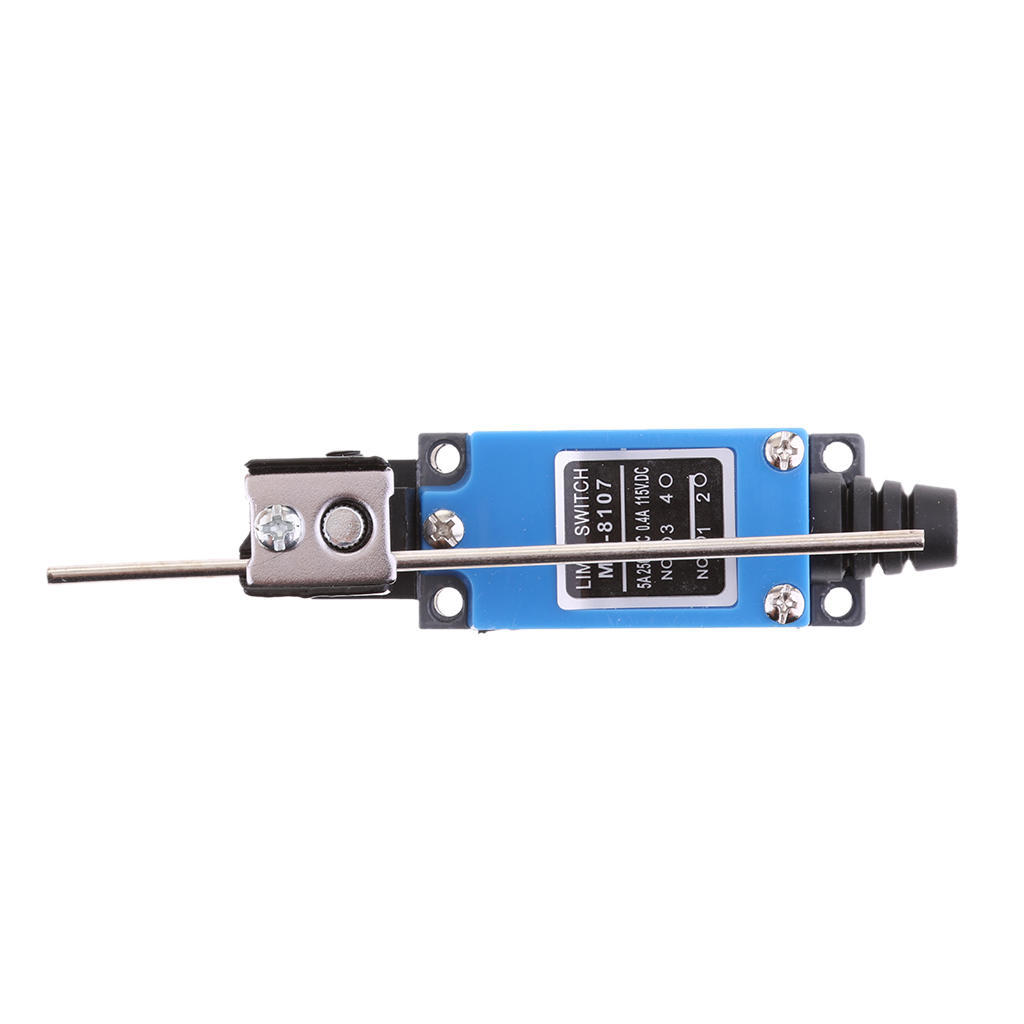

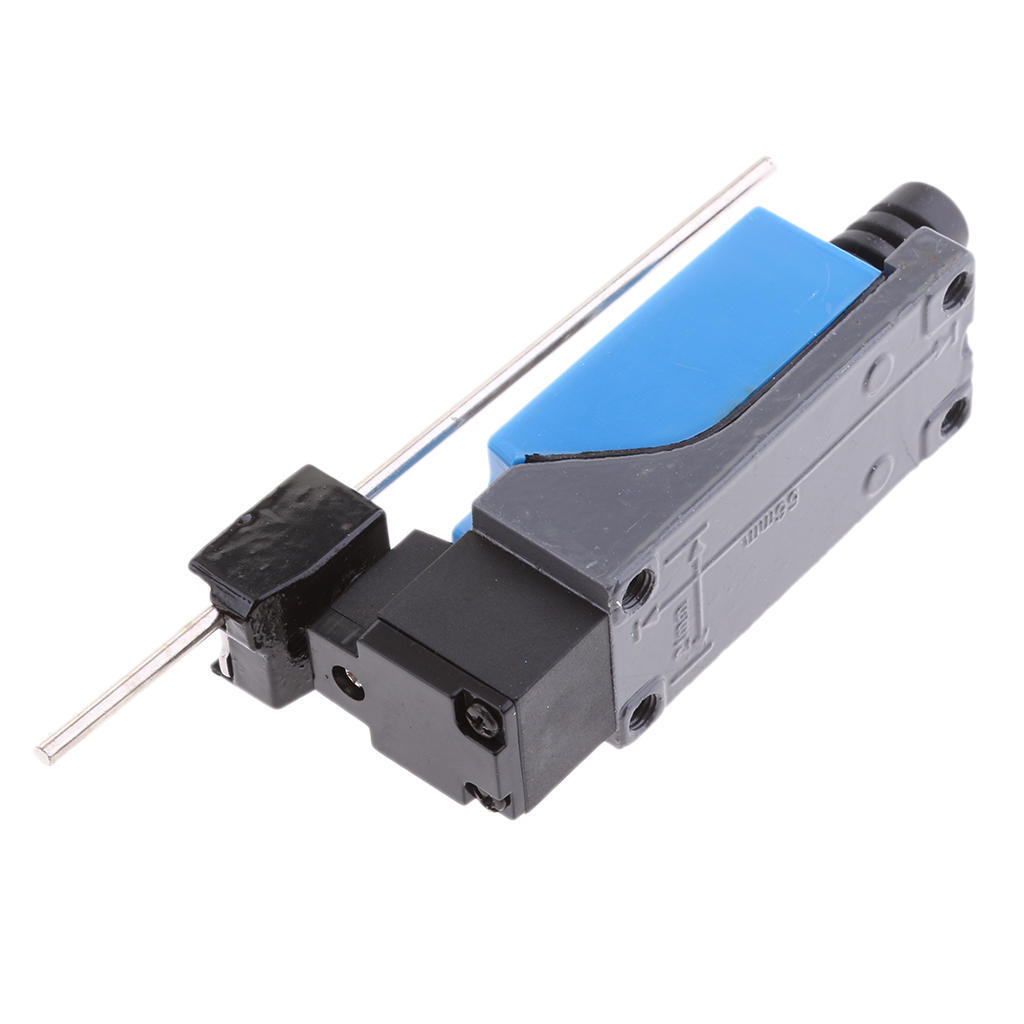

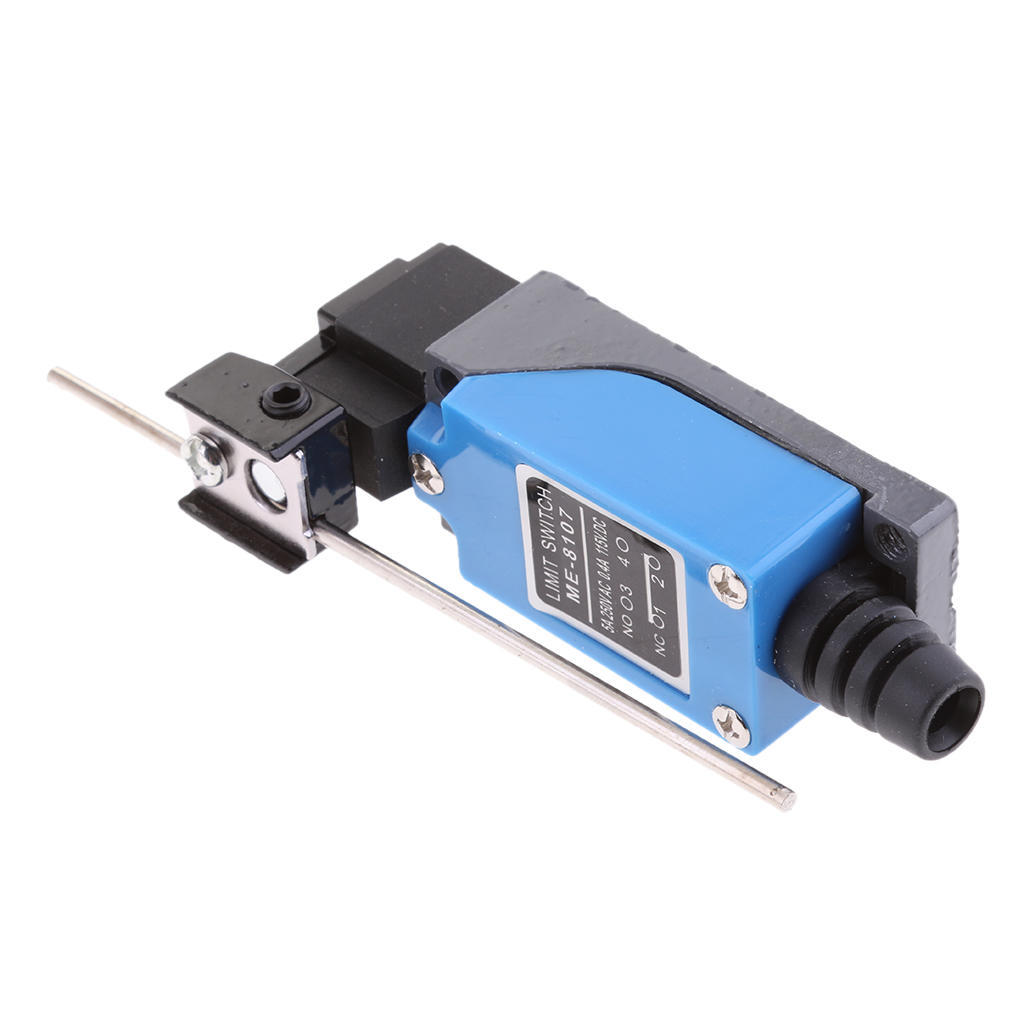

Limit Switch ME-8107 ลิมิตสวิทช์ แบบปรับแขนได้ Adjustable Rod Lever Arm

0.5mm-50cm/sec

Operating frequency

Mechanical: 120 operations/minute, Electrical: 30 operations/minute

Contact resistance

25mΩ max. (initial value)

Insulation resistance

100mΩ min. (at 500VDC)

Dielectric strength

1000VAC, 50/60HZ for 1 minute between terminals of the same polarity

1500VAC, 50/60 HZ for 1 minute between current carrying
and non-current-carrying metal parts

1500VAC, 50/60 HZ for 1 minute between each terminal and ground

Vibration

10-55HZ,1.5mm double amplitude

Shock

Mechanical durable: 1,000m/Sec2 (about 100GS)
Malfunction: 300m/Sec2 (about 30GS)

Ambient temperature

-5°C to +65°C

Humidity

<95% RH

Life

Mechanical: 10,000,000 operations above
Electrical: 500,000 operations above

Weight

About 130 to 190g

Degree of protection

IP65

TZ-8104

TZ-8108

TZ-8107

TZ-8111

TZ-8112/8122

TZ-8166/8167/8168/8169

OF Max.

750g

750g

750g

900g

900g

150g

RF Min.

100g

100g

100g

150g

150g

-

PT Max.

20º

20 º

20 º

1.5mm

1.5mm

30mm

OT Min.

50 º

50 º

50 º

4mm

4mm

-

MD Max.

12 º

12 º

12 º

1mm

1mm

-

OP

-

-

-

26 ± 0.8mm

37 ± 0.8mm

-
